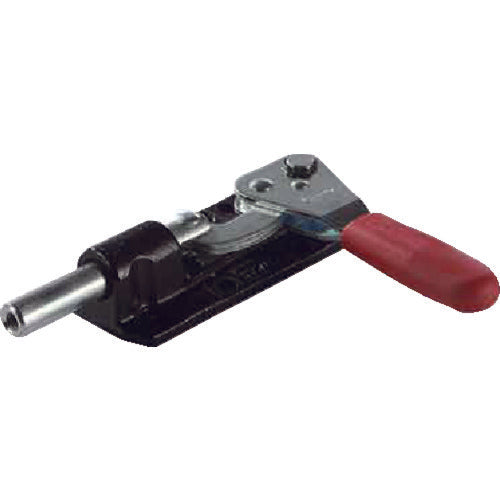

SPEEDY B [Sold out and discontinued] Toggle clamp Speedy Block Horizontal type 160ASD 160ASD 1 pc

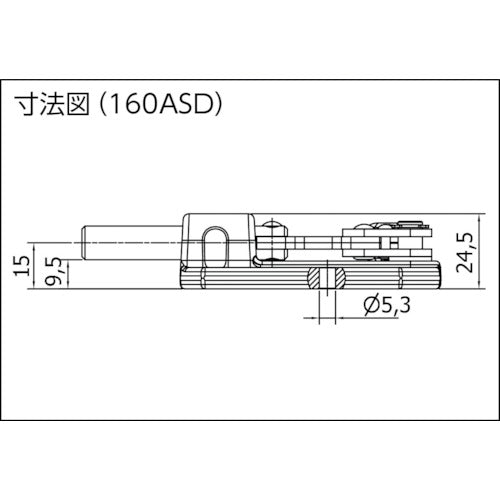

Catalogue number: 160ASD Features: ● Flat structure with reduced height, so it does not get in the way after installation. ● Can be used for both pushing and pulling. Applications: ● For welding jigs. For fixing workpieces. For machining jigs. Specifications: ● Overall length (mm): 117 ● Pressing force (kN): 1.3 ● Handle angle (°): 180 ● Stroke (mm): 30 ● Tip screw diameter: M6 ● Installation method: Hole diameter: 5.5 ● Dual-purpose type for lateral pushing and lateral pulling ● Push by rotating counterclockwise, pull by rotating clockwise Material/Finish: ● Zinc-plated steel
