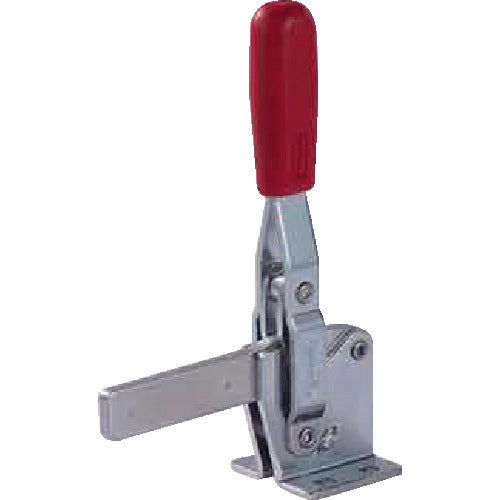

SPEEDY B [Sold out and discontinued] Toggle clamp Speedy Block Vertical 130E 130E 1 pc

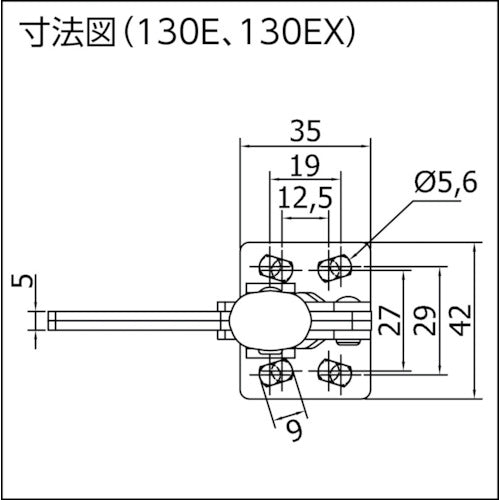

Catalogue number: 130E Features: ●During clamping operation, the clamp arm is guided vertically, so it is stable against lateral forces. Applications: ●For welding jigs. For fixing workpieces. For machining jigs. Specifications: ●Total length (mm): 142 ●Tightening pressure (kN): 1.05 ●Arm angle (°): 90 ●Installation method: Hole diameter: 5.6 ●Compatible contact bolt diameter: M6 ●Downward pressing type ●Vertical handle ●Flange base ●Clamp arm flat type (M6) Material/Finish: ●Zinc-plated steel Set contents/Accessories: ●Bolt retainer Note: ●Contact bolts are sold separately.
