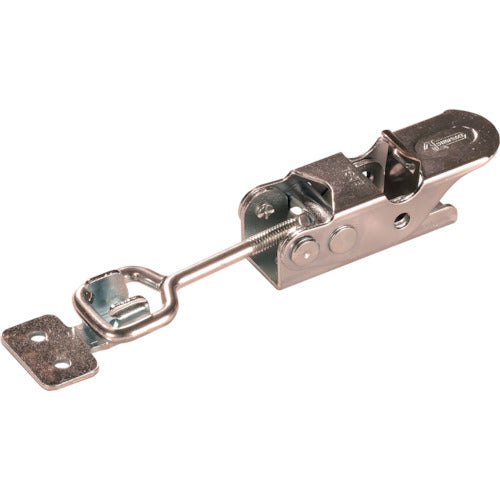

SPEEDY B E-latch toggle clamp G type with safety latch (dedicated type for holding) E2GLX 1 pc

Catalogue number: E2GLX Features: ● Equipped with a safety latch to prevent the clamp from being released due to vibration, etc. ● The length of the rod can be adjusted and fixed. ● Padlock mounting hole is provided so it can be locked. Applications: ● For welding jigs. ● For fixing workpieces. ● For machining jigs. Specifications: ● Total length (mm): 155.5 ● Pulling pressure (kN): 2 ● Adjustment amount (mm): 28-39 ● Stroke (mm): 28-39 ● Bolt adjustment amount (mm): 28-39 ● Hook part: Round type ● Product stamp: ES2110 ● Mounting hole diameter: 5.2 ● Special type for retaining Material/Finish: ● Stainless steel (SUS304)
