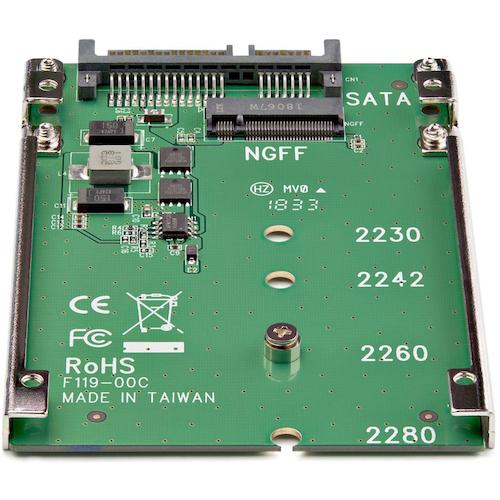

Catalog number: SAT32M225 Features: ●Steel open frame bracket. ●Compatible with 2.5-inch SATA bays 7mm or thicker. ●Compatible with B key M.2 SATA SSDs. ●Compatible with full-length M.2 SSDs (2230, 2242, 2260, 2280). ●Not compatible with M.2 NVMe or AHCI PCI-Express SSDs. Specifications: ●Connector shape: ●Host connection connector: SATA data & power (7+15 pin) ●Device connection connector: M.2 (SATA, B-Key, NGFF) ●Interface and transfer speed: SATA 3.0 (6 Gbps) ●Hot swappable: No ●Maximum data transfer speed: 6 Gbps ●Supported drive height: 2280, 2260, 2242, 2230 ●Device connection: Fixed method ●Device connection side interface: M.2 (SATA, B-Key, NGFF) ●Note: Not compatible with M.2 NVMe, AHCI PCI-Express SSD.
