STS Machine Control WMC-3D WMC-3D 1 unit

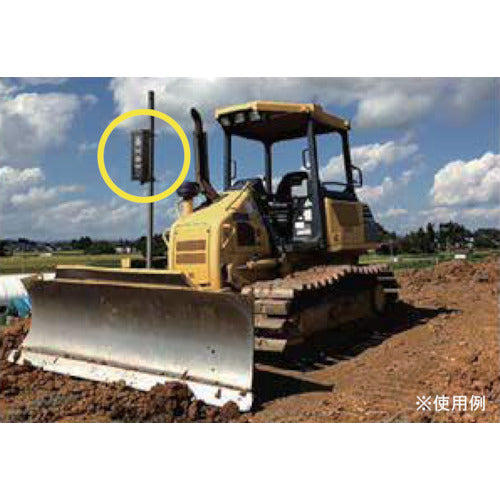

Catalog number: WMC-3D Features: ● By attaching to the blade of heavy machinery such as bulldozers and using it in combination with a rotating laser level, construction height can be managed, and high-precision construction is possible by displaying left/right and up/down inclination with high-brightness LED indicators. ● By using the optional remote display RD-3D, each indicator can be checked from the heavy machinery driver's seat via wireless connection. Applications: ● For civil engineering work, land leveling using heavy machinery such as bulldozers, bed digging, etc. Specifications: ● Height (mm): 380 ● Width (mm): 143 ● Thickness (mm): 116 ● Light reception accuracy: ±5mm ● Compatible models: STS-H600, SLH-600 ● Power source: Ni-MH rechargeable battery (built-in) ● Protection class: IP66 equivalent ● Light reception range: Radius of approximately 200m ● Detection width: 260mm ● Detection direction: 360° ● Power source: Ni-MH rechargeable battery ● Protection class: IP66 equivalent ● Wireless connection range with RD-3D (optional): Approximately 25m ● Compatible models: STS-H600, SLH-600 ● Connection method: Clamp type or magnet type (choose one at time of purchase) Set contents/accessories: ● Storage case ● Dedicated charger ● Battery cable
