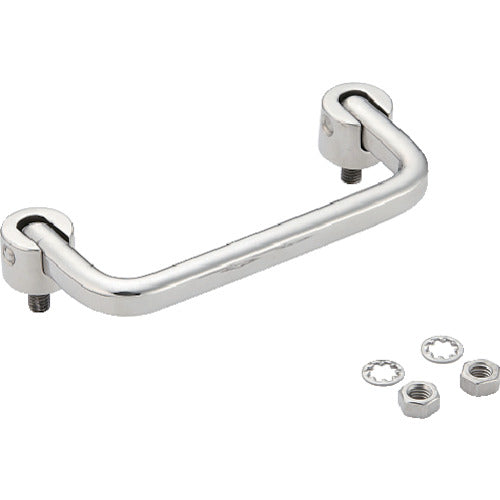

SUGATSUNE (100010012) HK-100 Stainless steel single folding handle HK-100 1 piece

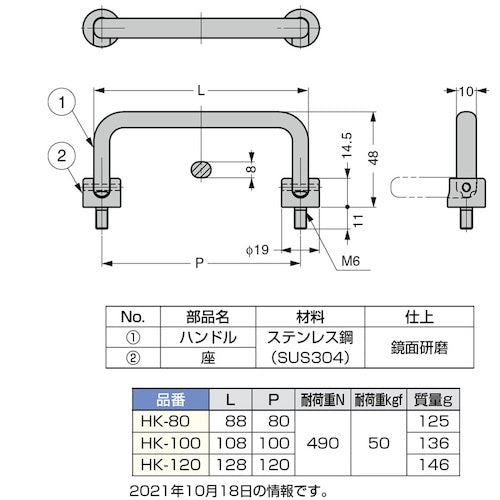

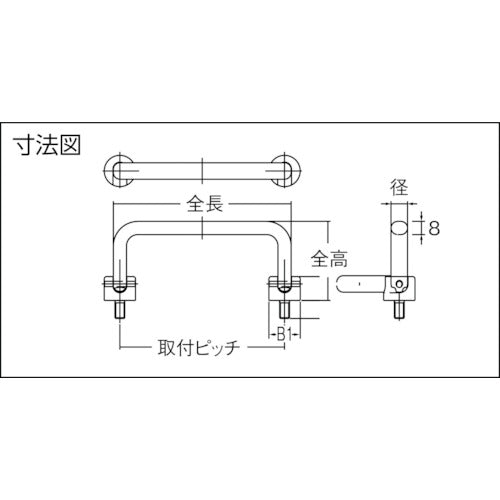

Catalogue number: HK-100 Features: ●The grip can be folded 90° and can be folded down when not in use. ●There is a clicking sensation when the handle folds (temporary holding mechanism). ●The cross-sectional shape of the handle is an oval shape that is easy to grip. Applications: ●Machine tools, cover grips. ●Steel racks, general furniture, etc. Specifications: ●Total length (mm): 108 ●Total height (mm): 48 ●Diameter (mm): 10 ●Thread dimensions: M6 x 1 ●Mounting pitch (mm): 100 ●Color: Stainless steel ●Reference load (kN): 0.49 ●Surface treatment: Mirror polishing ●B1 (mm): 19 ●Height (mm): 48 ●Total length L (mm): 108 ●Mirror polishing Material/Finish: ●Stainless steel (SUS304) Set contents/Accessories: ●Internal toothed washer (stainless steel), hexagonal nut (stainless steel)
