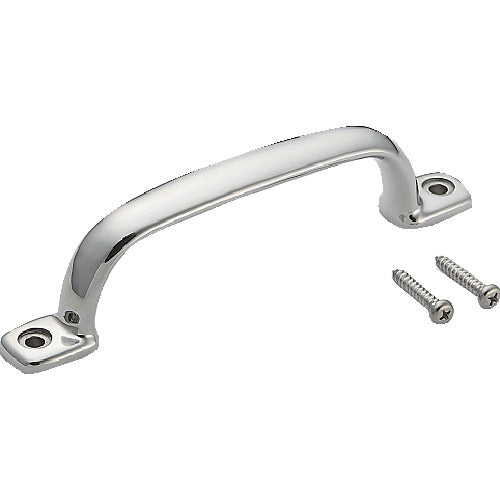

SUGATSUNE (100010134) 2LC-180 Stainless steel handle 2LC-180 1 piece

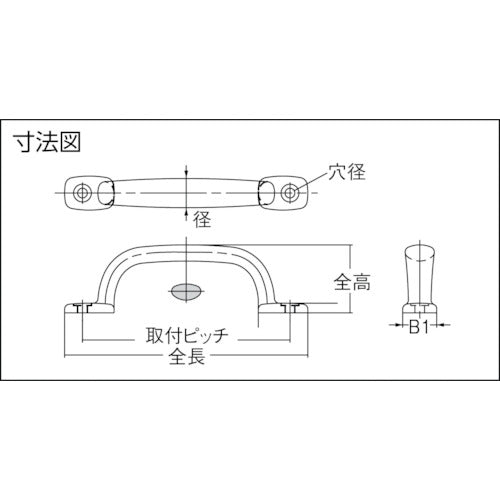

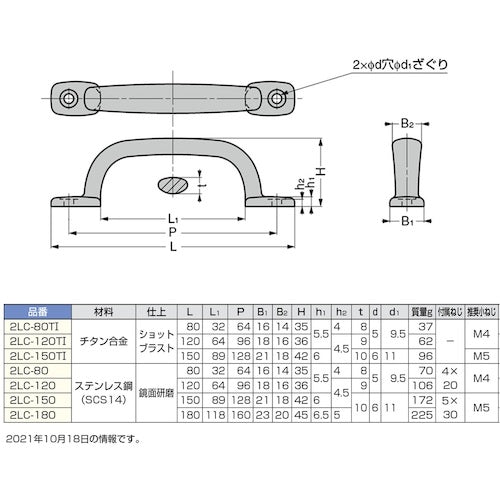

Catalogue number: 2LC-180 Features: ●Handle designed for easy grip. ●Stainless steel cast product. Applications: ●Various industrial machines, cabinets, fixtures. Specifications: ●Total length (mm): 180 ●Total height (mm): 45 ●Diameter (mm): 20 ●Mounting pitch (mm): 160 ●Width (mm): 23 ●2-hole pitch (mm): 160 ●Hole diameter (mm): 6 ●Surface treatment: Mirror polishing ●B1 (mm): 23 ●Height (mm): 45 ●Total length L (mm): 180 ●Mirror polishing Material/Finish: ●Stainless steel SCS14 (equivalent to SUS316) Set contents/Accessories: ●Philips recessed pan head tapping screw (stainless steel)
