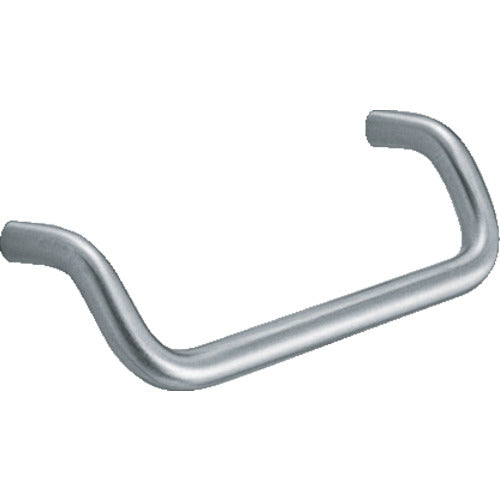

SUGATSUNE (100010522) LF-12-160 Stainless steel handle LF-12-160 1 piece

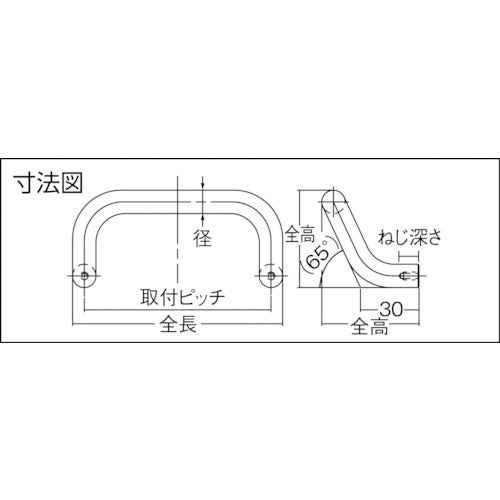

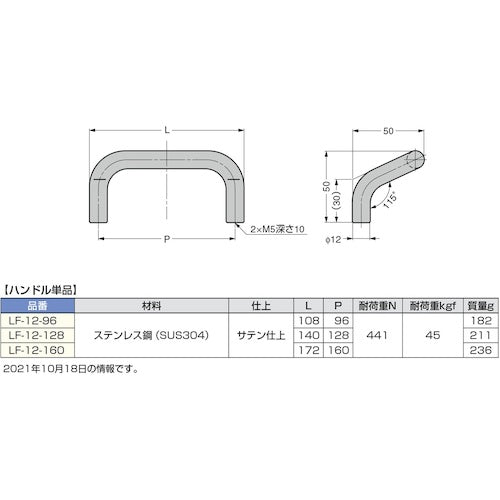

Catalogue number: LF-12-160 Features: ●The grip is inclined, making it easy to hold. ●The thick φ12mm handle provides stability and strength. Applications: ●Machine tools, control mechanisms. ●Steel racks, factory equipment. Specifications: ●Total length (mm): 172 ●Total height (mm): 50 ●Diameter (mm): 12 ●Thread size: M5 ●Thread depth (mm): 10 ●Mounting pitch (mm): 160 ●Color: Stainless steel ●Hole diameter (mm): M5 ●Surface treatment: Satin finish ●Depth (mm): 50 ●Height (mm): 50 ●Total length L (mm): 172 ●L (mm): 172 ●P (mm) 160 ●Load capacity (N): 441 ●Load capacity (kgf): 45 ●Load capacity: 45kgf Material/Finish: ●Stainless steel (SUS304) Set contents/Accessories: ●Cross-recessed truss small screw M5 x 30
