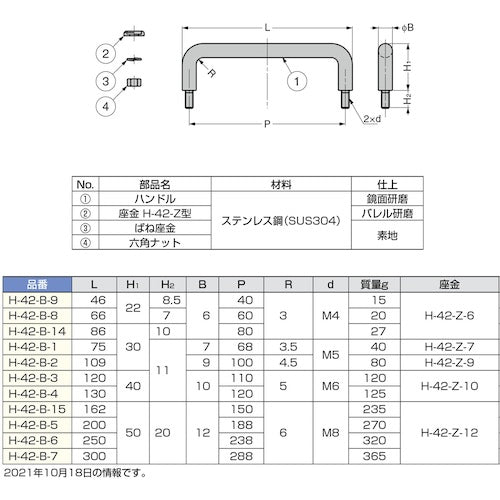

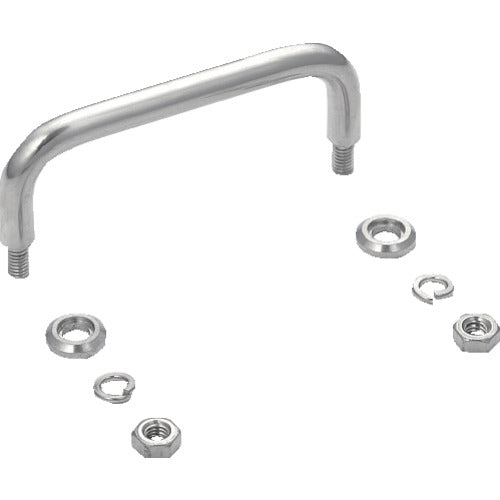

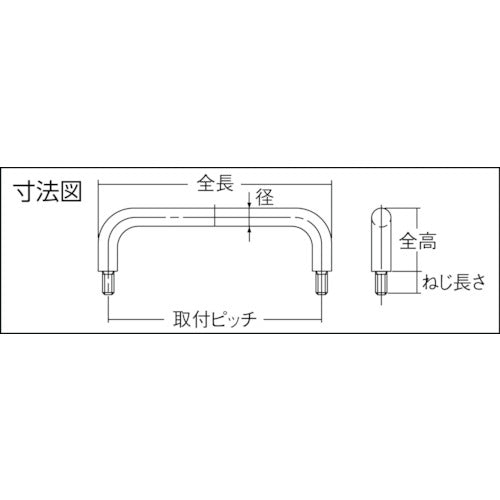

Catalog number: H-42-B-8 Features: ● Titanium alloy handle H-42-CT type is also available with the same size as H-42-C-2, H-42-C-4, and H-42-C-15. ● (L and B dimensions are slightly different from H-42-C-2) Applications: ● Various industrial equipment, cabinets. Specifications: ● Total length (mm): 66 ● Total height (mm): 22 ● Diameter (mm): 6 ● Screw dimensions: M4 ● Screw length (mm): 7 ● Mounting pitch (mm): 60 ● Color: Stainless steel ● Surface treatment: Mirror polishing ● Height (mm): 22 ● Total length L (mm): 66 ● Stainless steel (SUS304) Material/Finish: ● Stainless steel (SUS304) Set contents/Accessories: ● Spring washer, hex nut, decorative washer, 2 of each included
