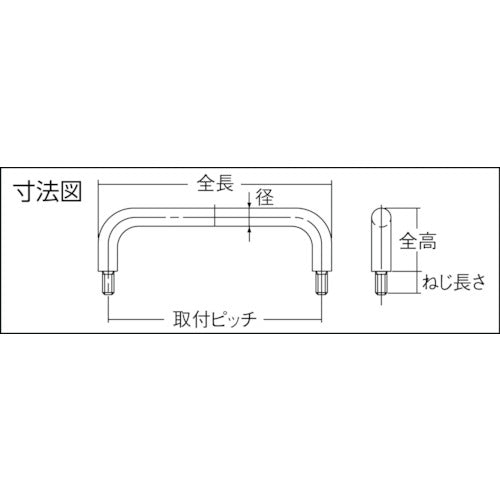

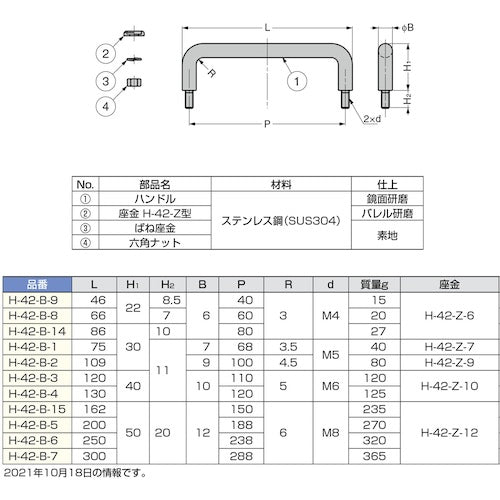

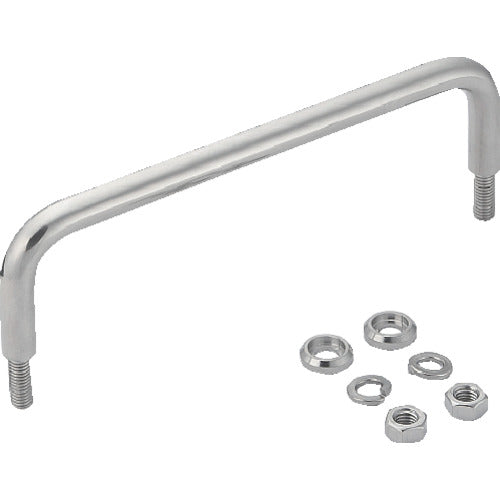

Catalog number: H-42-B-5 Features: ● Titanium alloy handle H-42-CT type is also available with the same size as H-42-C-2, H-42-C-4, and H-42-C-15. ● (L and B dimensions are slightly different from H-42-C-2) Applications: ● Various industrial equipment, cabinets. Specifications: ● Total length (mm): 200 ● Total height (mm): 50 ● Diameter (mm): 12 ● Thread size: M8 ● Thread length (mm): 20 ● Mounting pitch (mm): 188 ● Color: Stainless steel ● Surface treatment: Mirror polishing ● Height (mm): 50 ● Total length L (mm): 200 ● Stainless steel (SUS304) Material/Finish: ● Stainless steel (SUS304) Set contents/Accessories: ● Spring washer, hex nut, decorative washer, 2 of each included
