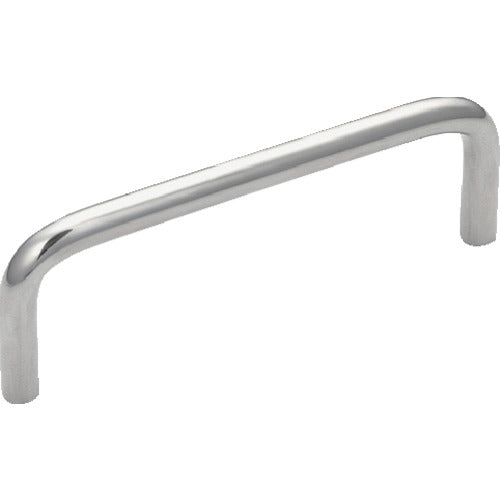

Catalogue number: H42-C-14 Features: ● Titanium alloy handle H-42-CT type is also available with the same size as H-42-C-2, H-42-C-4, and H-42-C-15. ● (L and B dimensions are slightly different from H-42-C-2) Applications: ● Various industrial equipment, cabinets. Specifications: ● Total length (mm): 86 ● Total height (mm): 30 ● Diameter (mm): 6 ● Screw dimensions: M4 ● Screw depth (mm): 7 ● Mounting pitch (mm): 80 ● Stainless steel (SUS304) Material/Finish: ● Stainless steel (SUS304)
