スガツネ工業(株)
SUGATSUNE (100011104) DL-90S Stainless Steel Handle DL-90S 1 pc
SUGATSUNE (100011104) DL-90S Stainless Steel Handle DL-90S 1 pc
Regular price
¥2,112
Regular price
Sale price
¥2,112
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

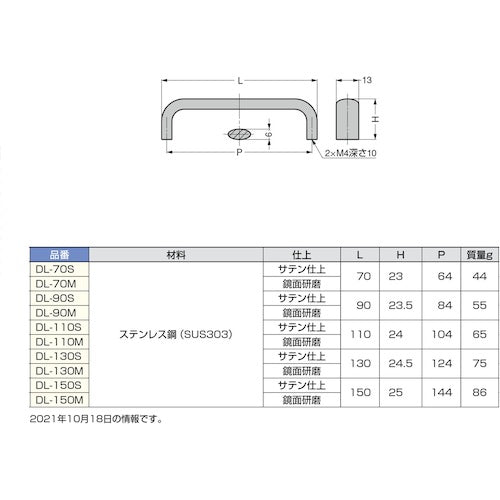

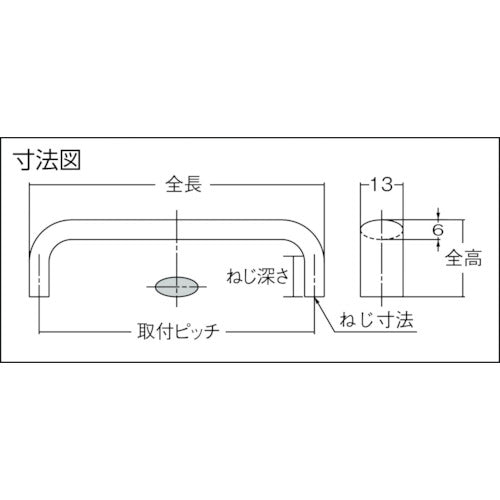

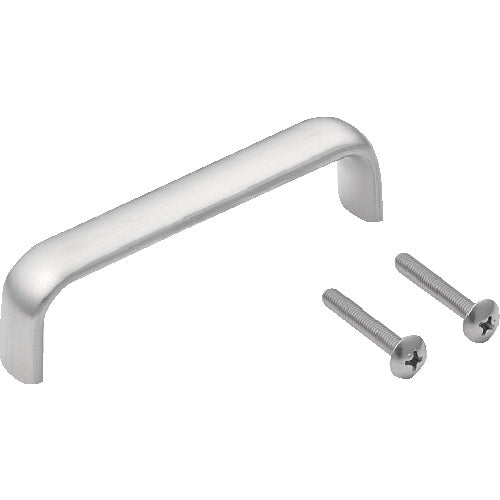

Catalogue number: DL-90S Features: ● The cross section is oval-shaped, making it easy to grip. Applications: ● For cabinets. Specifications: ● Overall length (mm): 90 ● Overall height (mm): 23.5 ● Screw dimensions: M4 ● Screw depth (mm): 10 ● Mounting pitch (mm): 84 ● Width (mm): 13 ● B (mm): 13 ● T (mm): 6 ● Stainless steel (SUS303) Material/Finish: ● Stainless steel (SUS303) ● Surface treatment: Satin finish Set contents/Accessories: ● Cross-recessed truss small screw M4 x 28 (stainless steel)
