スガツネ工業(株)
SUGATSUNE (100012017) SGL-16 knob SGL-16 1 piece
SUGATSUNE (100012017) SGL-16 knob SGL-16 1 piece
Regular price
¥506
Regular price
Sale price
¥506
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

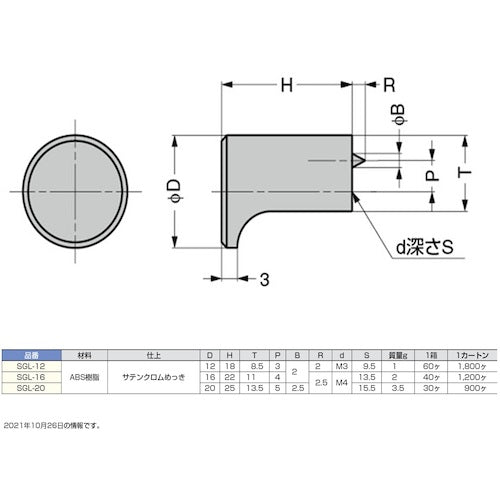

Catalog number: SGL-16 Features: ●Flame retardant: Uses UL94HB compliant materials. Specifications: ●Color: Silver ●Width (mm): 16 ●Depth (mm): 16 ●Height (mm): 22 ●Hole diameter (mm): M4 ●Included screws: Cross recessed truss machine screws M4 x 28 ●H (mm): 22 ●D (mm): 16 ●T (mm): 11 ●B (mm): 2 ●R (mm): 2.5 ●d (mm): M4 ●S (mm): 13.5 ●P (mm): 4 ●Satin chrome plating Material/Finish: ●ABS resin Set contents/Accessories: ●Cross recessed truss machine screws M4 x 28 Caution: ●There is variation in the position and size of the pins on this product.
