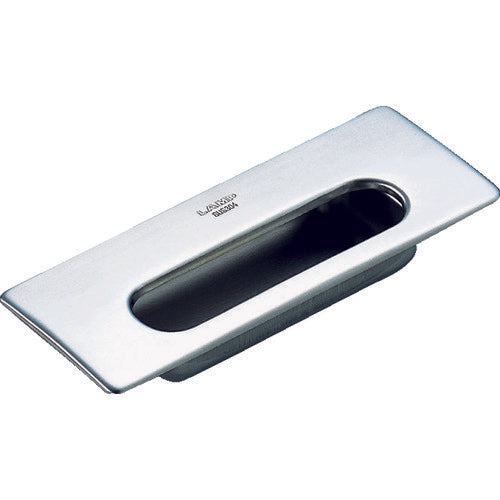

SUGATSUNE (100012959) HH-KL160 Stainless steel recessed handle HH-KL160 1 piece

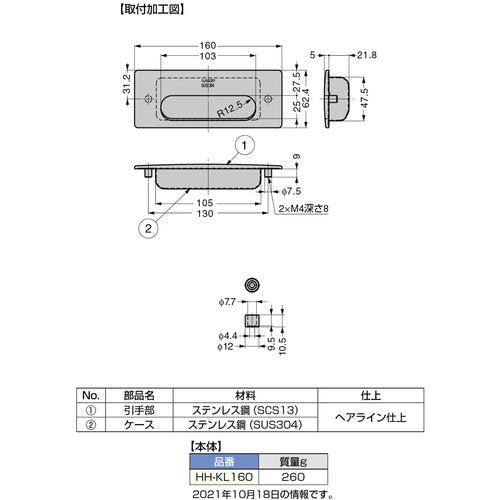

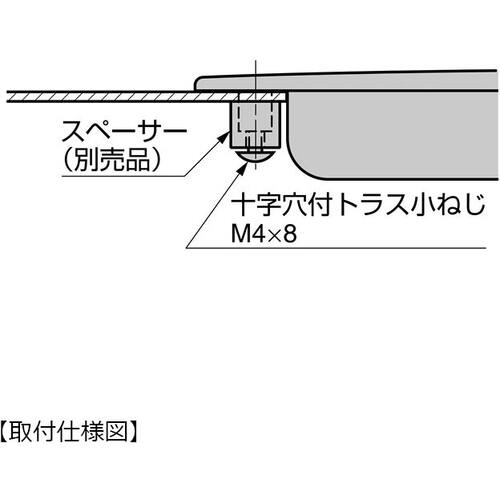

Catalog number: HH-KL160 Features: ● All-metal and conductive, making it ideal for equipment that requires electromagnetic shielding. ● Complies with SEMI standards (SEMIS8-0600) ● When attaching to sheet metal, please use the spacer sold separately. Applications: ● Semiconductor, liquid crystal manufacturing equipment, industrial machinery. Specifications: ● Width (mm): 62.4 ● Depth (mm): 26.8 ● Hole diameter (mm): M4 ● Total length (mm): 160 ● Mounting pitch (mm): 130 ● Height (mm): 160 ● Width (mm): 62.4 ● Included screws: Cross recess truss screw M4 x 8 ● Compliant with SEMI standards Material/Finish: ● Stainless steel (SCS13) Caution: ● * When attaching to sheet metal, a spacer (BSP-8) sold separately is required.
