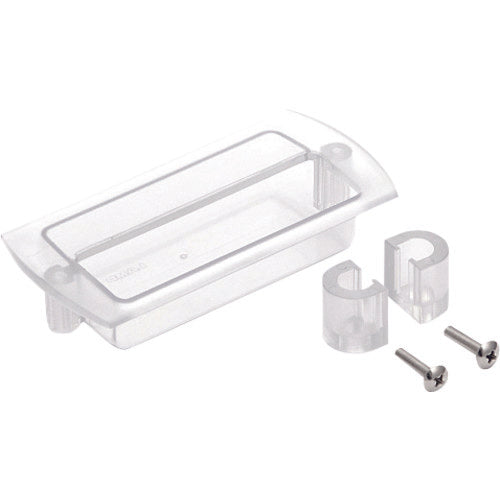

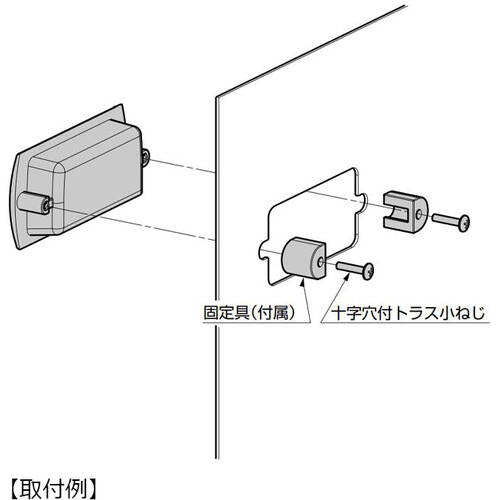

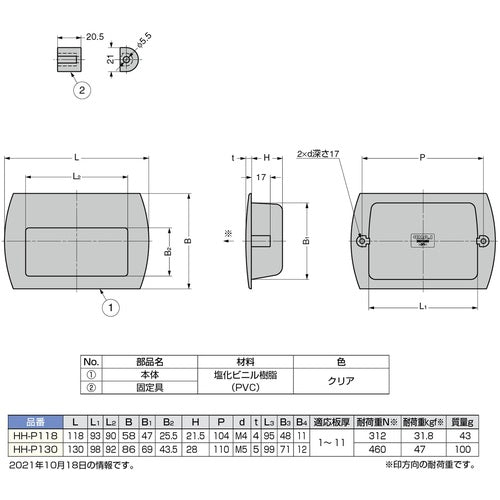

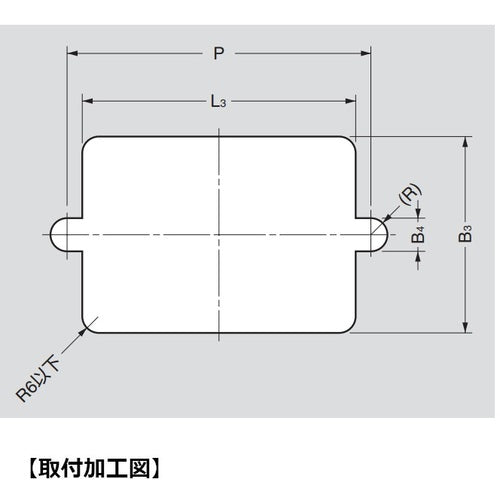

Catalog number: HH-P118 Features: ●Easy to grip even with gloves on, easy to use, rounded and gentle design, built-in handle (Complies with SEMI standard, SEMIS8-0308). ●Lead-free polyvinyl chloride resin is used, and it has excellent weather resistance and chemical resistance. Applications: ●Semiconductor manufacturing equipment, liquid crystal manufacturing equipment, etc. Specifications: ●Total length (mm): 118 ●Total height (mm): 25.5 ●Screw dimensions: M4 ●Mounting pitch (mm): 104 ●Color: Clear ●Width (mm): 58 ●Vinyl chloride resin (PVC) Material/Finish: ●Vinyl chloride resin (PVC) Set contents/Accessories: ●Fixing tool ●Cross-recessed truss machine screw M4 x 20 Note: ●Use the included screw when the plate thickness to be attached is 1 to 5 mm. ●Otherwise, prepare a screw with a thread of 10 mm or more according to the plate thickness.
