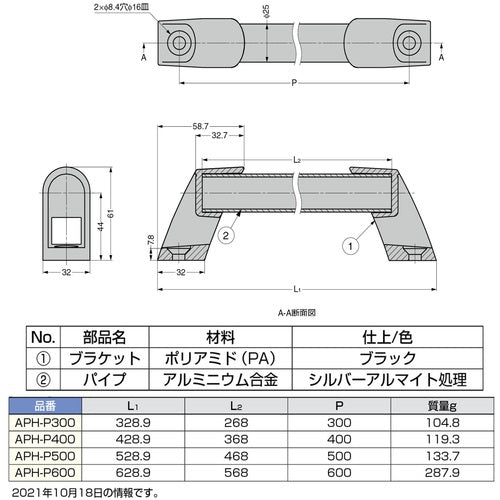

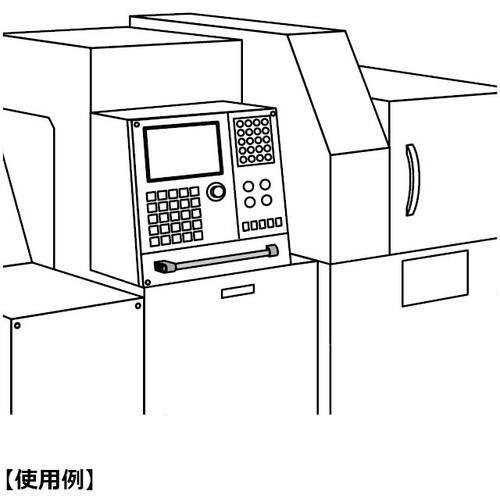

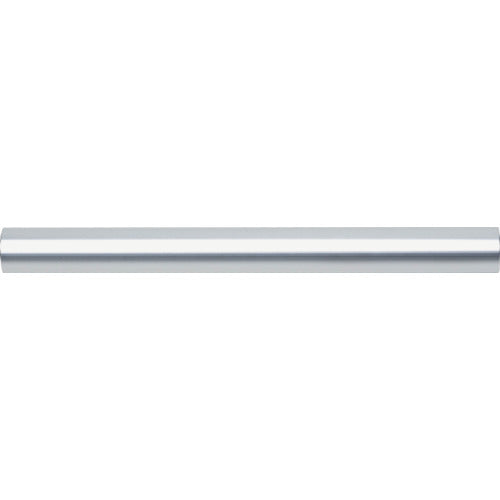

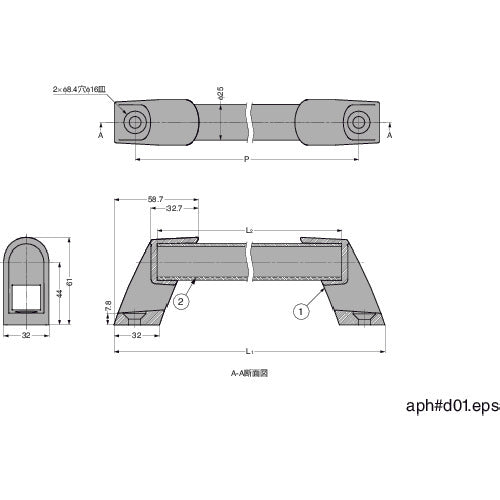

Catalog number: APH-P300 Features: ● A surface-mounted handle with a simple design that can be screwed from the front. ● The overall length can be freely changed by cutting the pipe. ● Different lengths can also be produced. ● Please contact us for lot sizes and available lengths. ● The gap between the pipe and bracket is designed to be equal all around, allowing for beautiful assembly. Applications: ● Machine tools, large doors, etc. Specifications: ● Overall length (mm): 268 ● Diameter (mm): 25 ● Compatible handle: APH-B ● P (mm): 300 ● L1 (mm): 328.9 ● L2 (mm): 268 ● Depth (mm): None ● Overall length L (mm): 268 ● Simple design Material/Finish: ● Aluminum alloy Note: ● This is the part number for the pipe only, and the bracket is sold separately.
