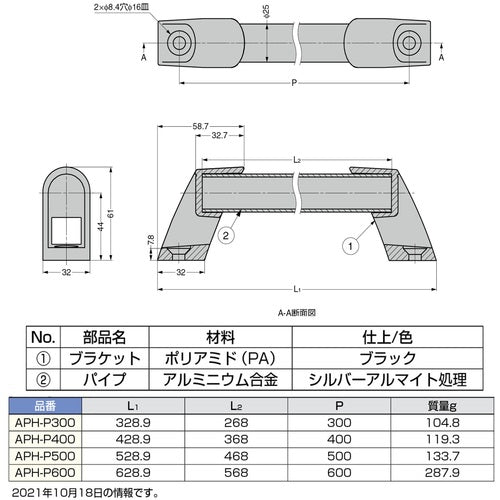

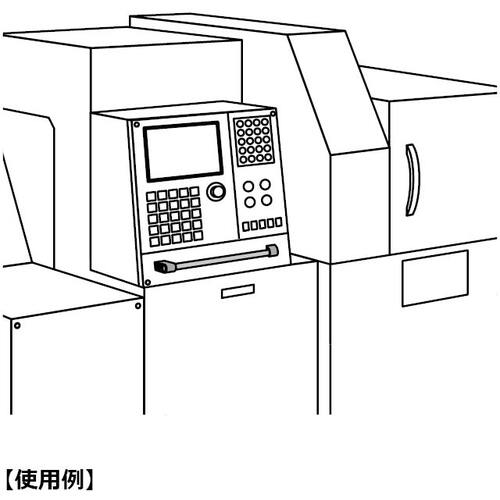

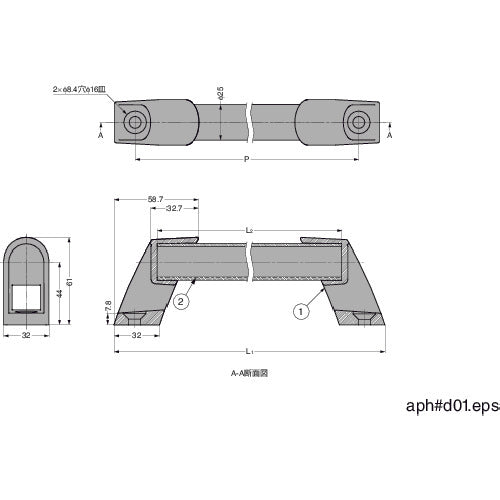

Catalogue number: APH-P600 Features: ● A surface-mounted handle with a simple design that can be screwed from the front. ● The overall length can be freely changed by cutting the pipe. ● Different lengths can also be manufactured. ● Please contact us regarding the lot size and available length. ● The gap between the pipe and bracket fitting is designed to be equal all around, allowing for beautiful assembly. Applications: ● Machine tools, large doors, etc. Specifications: ● Overall length (mm): 568 ● Diameter (mm): 25 ● Compatible handle: APH-B ● P (mm): 600 ● L1 (mm): 628.9 ● L2 (mm): 568 ● Depth (mm): None ● Overall length L (mm): 568 ● Simple design Material/Finish: ● Polyamide (PA)
