SUGATSUNE (110029270) AP-20 / Stainless steel hanger plate AP-20 1 piece

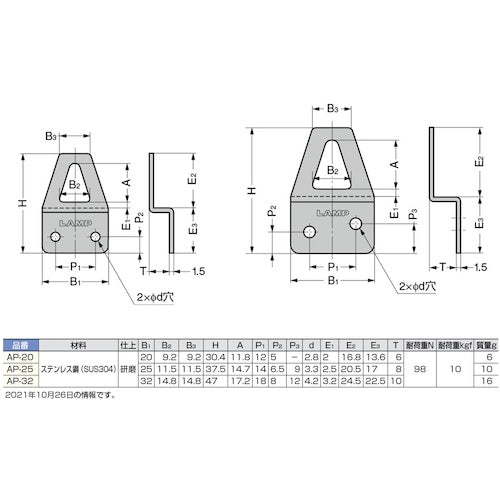

Catalog number: AP-20 Features: ●Can be used widely as a hanging bracket. Specifications: ● Hanging load (N/kgf): 98N/10kgf ● Hanging load (kgf): 10 ● Width (mm): 20 ● Depth (mm): 7.5 ● Height (mm): 30.4 ● Thickness (mm): 1.5 ● A (mm): 11.8 ● B1 (mm): 20 ● B2 (mm): 9.2 ● B3 (mm): 9.2 ● H (mm): 30.4 ● P1 (mm): 12 ● P2 (mm): 5 ● T (mm): 6 ● d (mm): 2.8 ● t (mm): 6 ● Number of mounting holes (pcs): 2 ● Surface treatment: Polished ● P3 (mm): 12 ● E1 (mm): 3.2 ● E2 (mm): 24.5 ● E3 (mm): 22.5 ● Included screws: Cross recessed round wood screws 2.7 x 13 (stainless steel) ● Polished finish Material/Finish: Stainless steel (SUS304) Set contents/Accessories: Cross recessed round wood screw 2.7 x 13 (stainless steel)
