SUGATSUNE (110029272) AP-32 / Stainless steel hanger plate AP-32 1 piece

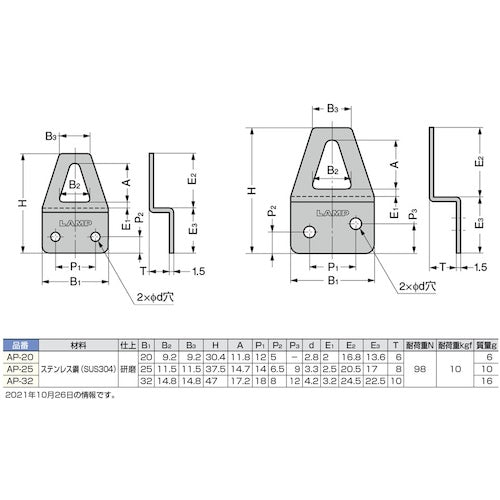

Catalog number: AP-32 Features: ●Can be used widely as a hanging bracket. Specifications: ● Hanging load (N/kgf): 98N/10kgf ● Hanging load (kgf): 10 ● Width (mm): 32 ● Depth (mm): 11.5 ● Height (mm): 47 ● Thickness (mm): 1.5 ● A (mm): 17.2 ● B1 (mm): 32 ● B2 (mm): 14.8 ● B3 (mm): 14.8 ● H (mm): 47 ● P1 (mm): 18 ● P2 (mm): 8 ● T (mm): 10 ● d (mm): 4.2 ● t (mm): 10 ● Number of mounting holes (pcs): 2 ● Surface treatment: Polished ● P3 (mm): 12 ● E1 (mm): 3.2 ● E2 (mm): 24.5 ● E3 (mm): 22.5 ● Included screws: Cross recessed round wood screws 3.5 x 16 (stainless steel) ● Polished finish Material/Finish: Stainless steel (SUS304) Set contents/Accessories: Cross recessed round wood screw 3.5 x 16 (stainless steel)
