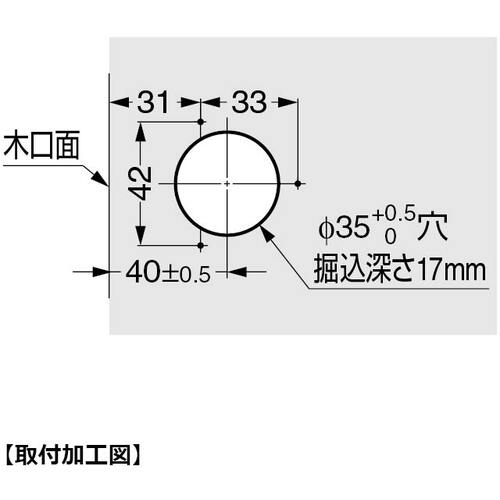

Catalog number: HK-CH35-BL Features: * When not in use, the arm is automatically stored on the edge of the tabletop. * When stored, the arm is visible on the edge of the tabletop, so you can confirm that the hook is there. * The recommended board thickness is 26mm or more. * For boards with a thickness of 26mm or less, use the optional distance plate (3mm thick) and adjust the installation position to your liking. Uses: ●Stores, facilities, homes, etc. Specifications: ●Color: Black ●Hanging load (N/kgf): 98/10 ●Hanging load (kgf): 10 ●Load capacity (N/kgf): 98/10 ●Width (mm): 60 ●Depth (mm): 32.5 ●Height (mm): 79 ●Thickness (mm): 26 ●Number of mounting holes (pcs): 3 ●Compatible plate thickness (mm): 26 ●Automatic storage (soft close) Material/Finish: ●Aluminum alloy (ADC) Set contents/Accessories: ●Cross-recessed countersunk tapping screws 4 x 20 Caution: ●Install on a strong tabletop.
