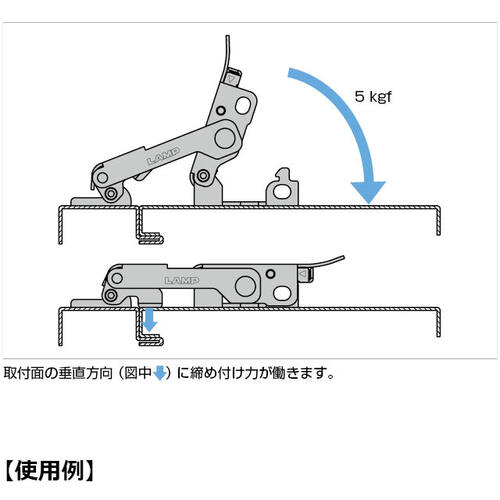

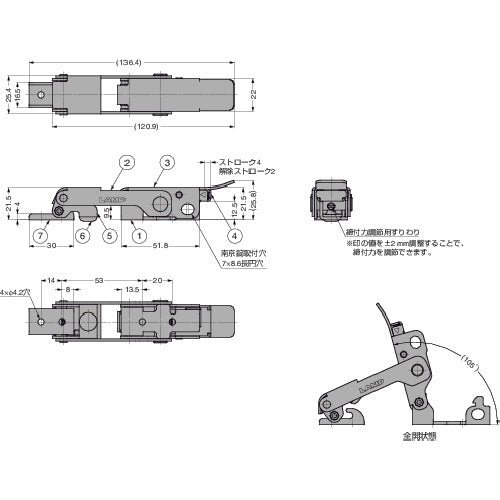

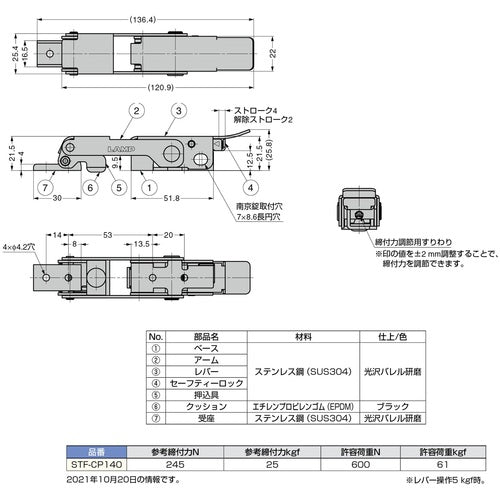

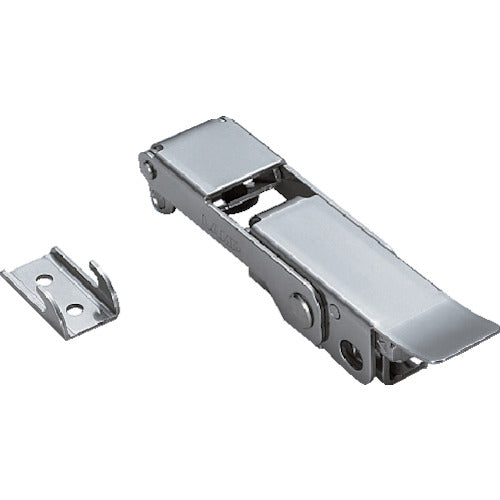

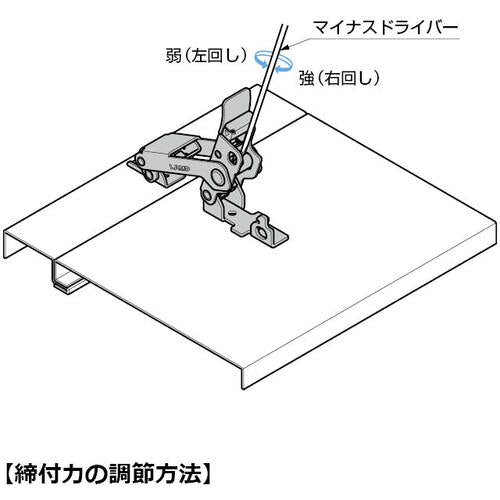

Catalogue number: STF-CP140 Features: ●The push tool pushes in the door, allowing for clamping perpendicular to the mounting surface. ●The clamping force can be easily adjusted. ●The safety lock is automatically engaged. ●The lock can be released by pressing the safety lock. ●Can be used with a padlock. Applications: ●For use with various industrial equipment. Specifications: ●Allowable load (N): 600 ●Allowable load (kgf): 61 ●Clamping force (N): 245 ●Dimensions (mm) H: (136.4) ●H (mm): (136.4) ●Allowable load: 61 ●Dimensions (mm) d: None ●Dimensions (mm) D1: None ●Dimensions (mm) M: None ●Dimensions (mm) D3: None ●Dimensions (mm) Dp: None ●T (mm): None ●Dimensions (mm) D2: None ●Adjustable clamping force Material/Finish: ●Stainless steel (SUS304)
