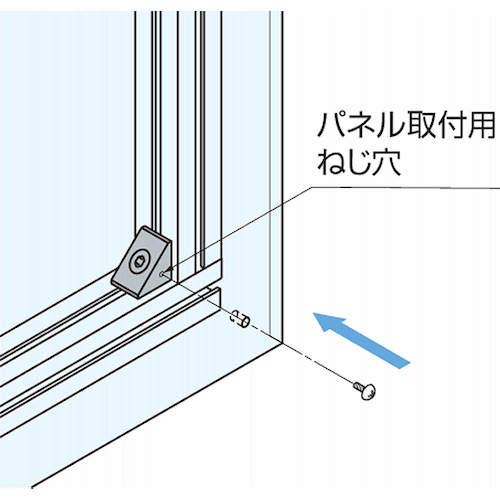

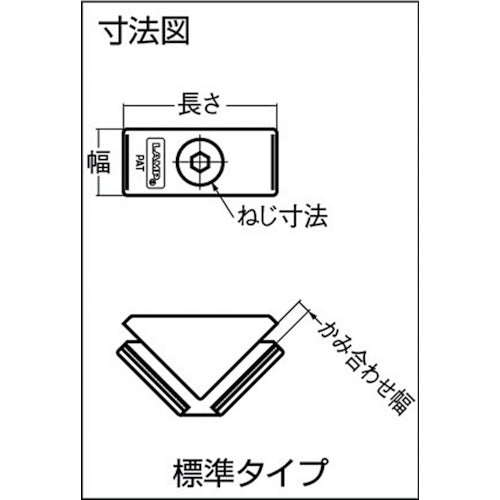

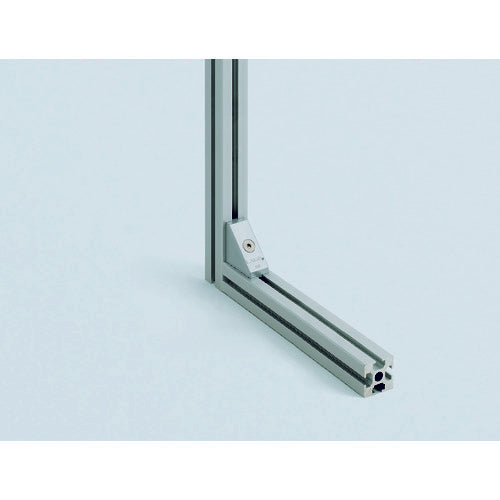

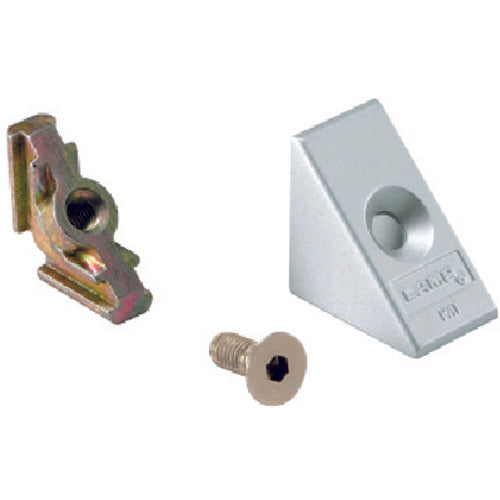

Catalog number: PJ-60 Features: ●A joint system that allows easy attachment of single-groove aluminum frames. ●No need for nuts or positioning, can be attached with one screw. ●Unique attachment system reduces work time. ●Can be used widely with aluminum profiles from various companies. ●The holed type allows panels to be attached to the inside of the aluminum frame. Uses: ●Parts for aluminum frames only. Specifications: ●Width (mm): 20 ●Length (mm): 41 ●Engagement width (mm): 1.5-3.0 ●Screw dimensions: M6 x 15 ●Compatible groove width (mm): 6 ●Pre-insertion type Material/Finish: ●Joint cover: Aluminum alloy ●Inner joint: Zinc alloy Note: ●The image is of one of the products in the same series, and the appearance may differ from that of this product number.
