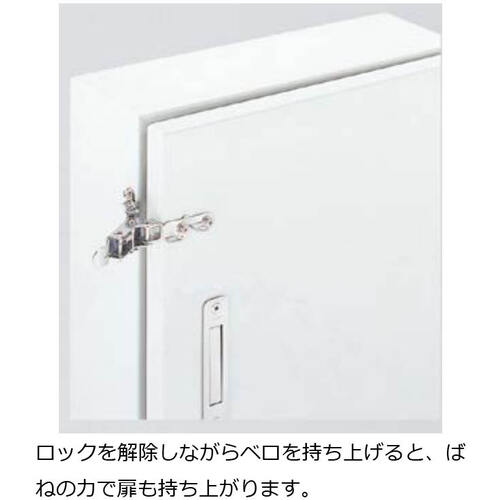

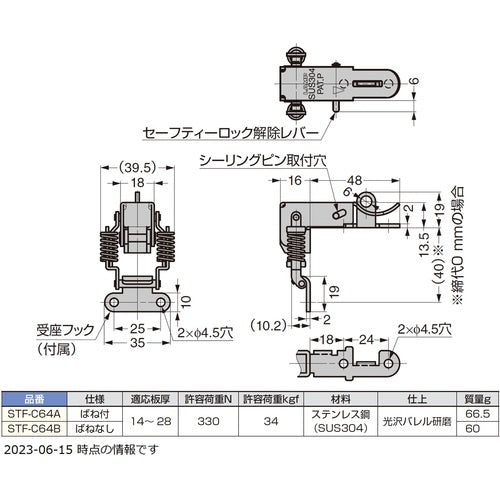

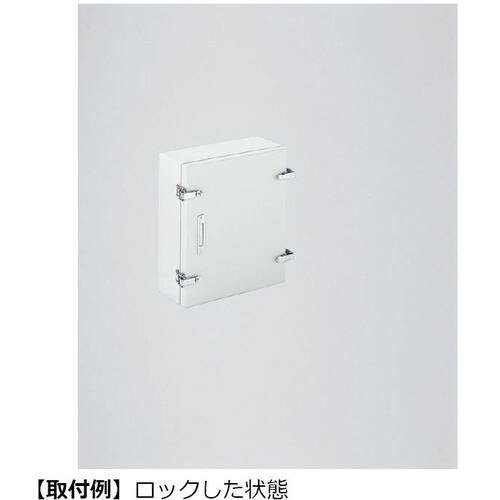

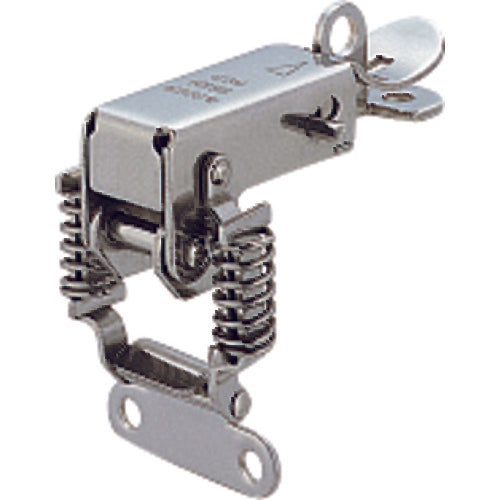

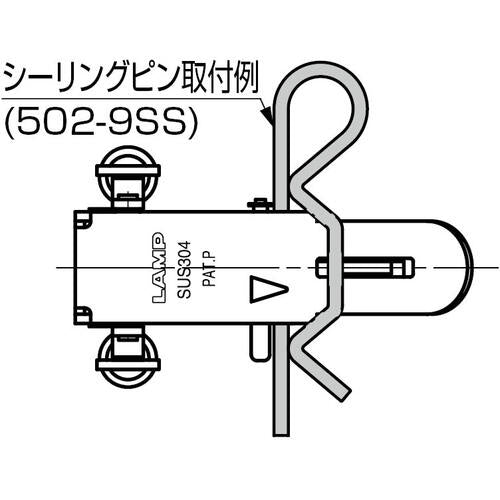

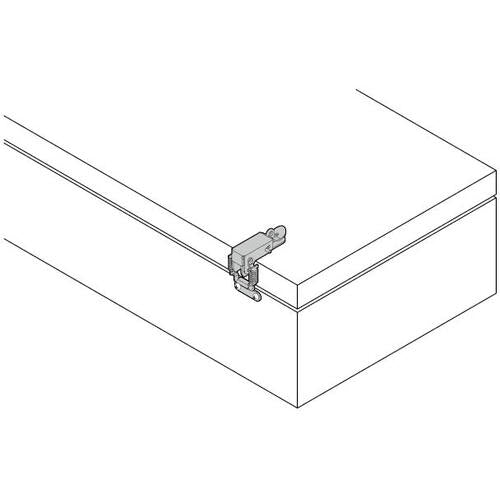

Catalog number: STF-C64A Features: ● Can be attached to the corner of the housing, and can be tightened and released from the front side of the door. ● Can be used in combination with the corner fastener hinge STH-C64. ● Comes with a safety lock to prevent accidental release and to resist vibration. ● Can be used with padlocks and seals. ● Receiver hooks can be used separately in addition to the included accessories. Applications: ● Doors and covers that require dust and water proofing, doors and covers that require earthquake resistance, measuring equipment, communication equipment boxes, machine tools, etc. Specifications: ● Allowable load (kgf): 34 ● Height (mm): 19 ● Material and finish: SUS304, barrel polishing ● Spring included ● Suitable plate thickness 14 to 28 mm ● Allowable load: 330 N (34 kgf) Material/Finish: ● Stainless steel (SUS304) Set contents/Accessories: ● Receiver hook Caution: ● The tightening dimension of STF-C64A should not exceed 4 mm.
