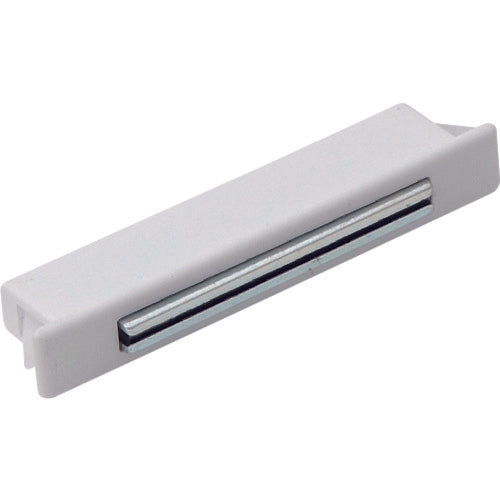

SUGATSUNE (140013015) MC-FS-4W Thin magnetic catch Adhesive force 25N MC-FS-4W 1 piece
SUGATSUNE (140013015) MC-FS-4W Thin magnetic catch Adhesive force 25N MC-FS-4W 1 piece
Regular price
¥306
Regular price
Sale price
¥306
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

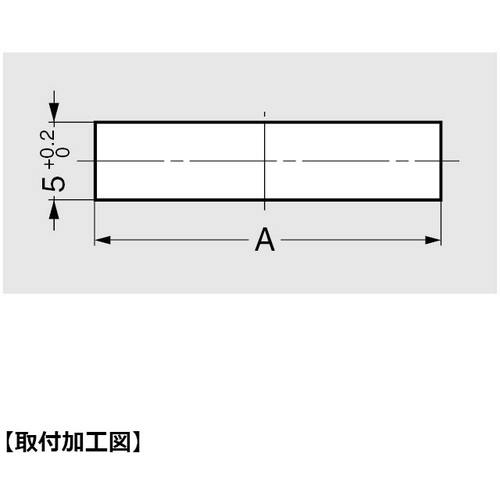

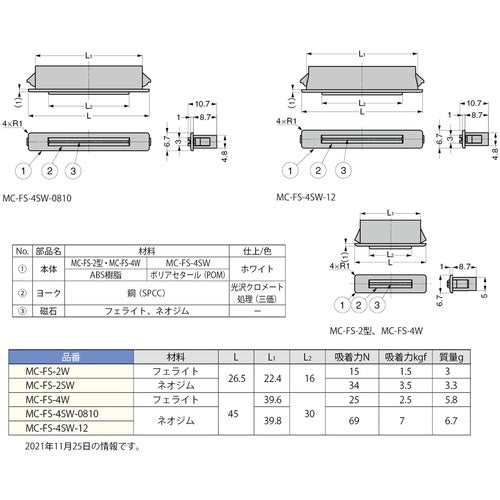

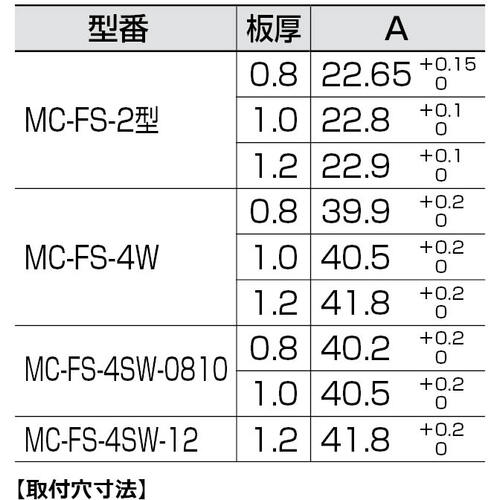

Catalog number: MC-FS-4W Features: ●Thin type with a height of 5 mm. Applications: ●For various industrial equipment. Specifications: ●Color: White ●Total length (mm): 45.0 ●Adhesive force (N): 25 ●Width (mm): 6.7 ●Thickness (mm): 5.0 ●Compatible plate thickness (mm): 0.8 to 1.2 ●L (mm): 45.0 ●L1 (mm): 39.8 ●Additional functions: One-touch installation ●Type: Standard type ●Adhesive force/pulling force (N): 25 ●Adhesive force/pulling force (kgf): 2.5 ●L2 (mm): 30.3 ●One-touch installation mechanism Material/Finish: ●ABS resin ●Color: White ●Ferrite Caution: ●Please be sure to read the handling precautions.
