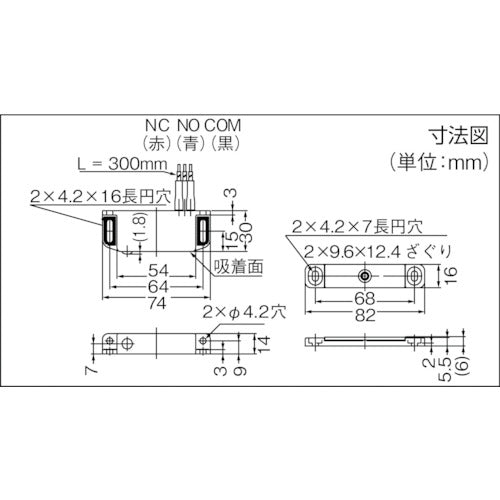

Catalog number: MC-JM74SW-30 Features: ● Functions as a catch and power switch depending on whether the door or lid is open or closed. ● The switch is a single-pole double-throw type. Specifications: ● Color: Black ● Overall length (mm): 74 ● Suction force (N): 29.4 ● Mounting pitch (mm): Main body: 64 Receptacle: 68 ● Receptacle presence: Yes ● Rating: AC250V5A/AC125V5A/DC30V5A ● Operating temperature range: -40 to +80°C Materials/Finish: ● Main body: Polyacetal (POM)/Neodymium ● Receptacle: Polyacetal (POM)/Stainless steel (SUS430)
