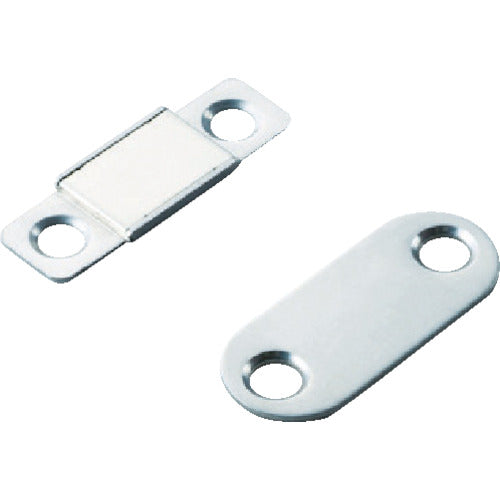

SUGATSUNE (140020673) MC-YN015SP Stainless steel ultra-thin magnetic catch MC-YN015SP 1 piece

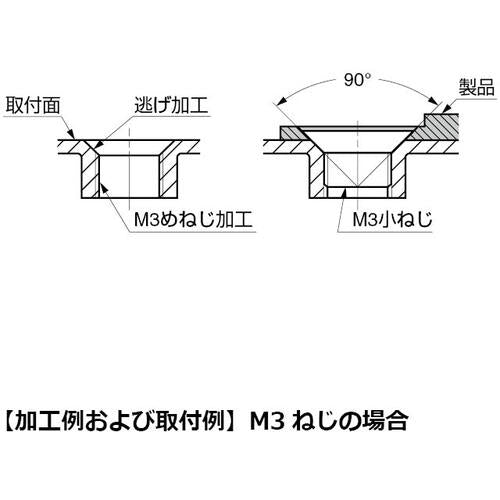

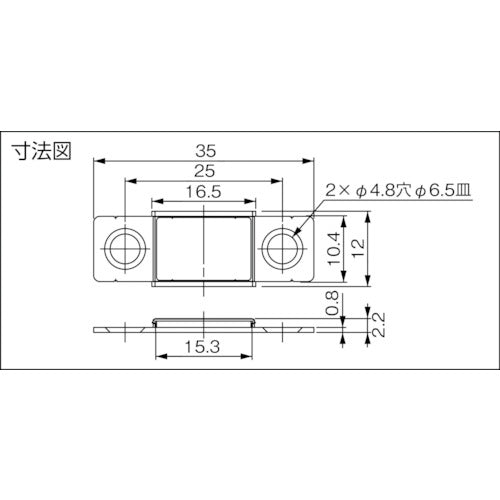

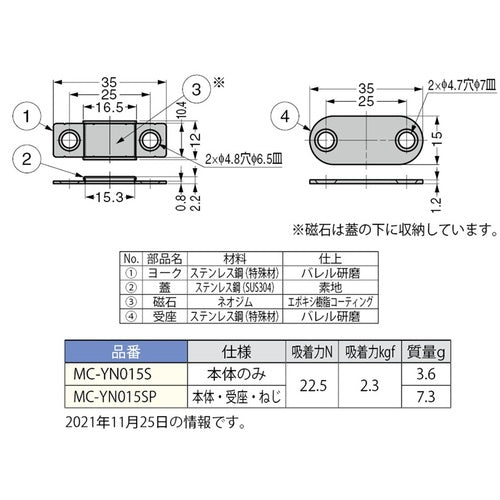

Catalog number: MC-YN015SP Features: ● Extremely thin size with a thickness of 2.2 mm. ● Made of stainless steel and the magnet is also coated with epoxy resin, making it highly rust-resistant. ● Can also be riveted. Applications: ● For holding doors, etc. Specifications: ● Color: Silver ● Total length (mm): 35 ● Adhesive force (N): 22.5 ● Mounting pitch (mm): 25 ● Recommended screw: M3 flat head screw ● When used around water or in a hot and humid environment, iron powder adhering to the magnet may cause rust. ● Use in places below 80°C. ● There is variation in adhesive force. Please check the actual product. ● The receiver should be installed so that both yokes on both sides come into contact and do not come into direct contact. ● Be sure to provide a thread relief on the mounting surface of this product. Material/Finish: ● Body: Stainless steel Caution: ● Use in environments below 80°C. ●Use in locations below 80°C●Install the receiver so that both yokes on both sides come into contact with the lid in two places and do not come into direct contact with the lid●Direct contact may cause the magnet to break and make it unusable●Be sure to provide clearance for screws and rivets on the mounting surface of this product
