SUGATSUNE (140024469) MC-MS50DGR Silicone Magnet Catch MC-MS50DGR 1 piece
SUGATSUNE (140024469) MC-MS50DGR Silicone Magnet Catch MC-MS50DGR 1 piece
Regular price
¥845
Regular price
Sale price
¥845
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

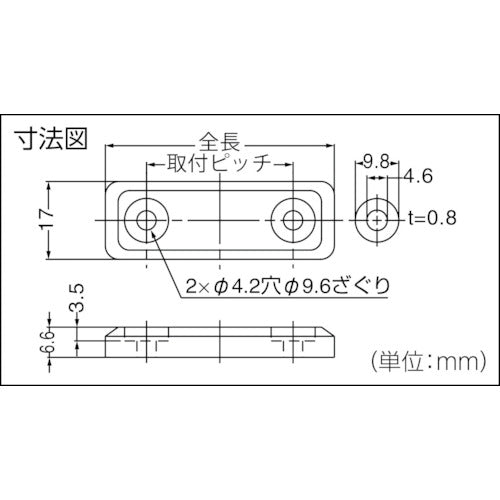

Catalog number: MC-MS50DGR Features: ●Magnet is wrapped in silicone rubber to reduce impact noise during adhesion. ●Washers are fitted to the fixing holes in the main body to reinforce the silicone rubber, which is less likely to tear when screwed in. Specifications: ●Color: Dark gray ●Total length (mm): 50 ●Adhesive force (N): 39.2 ●Mounting pitch (mm): 32 ●Width (mm): 17 ●Thickness (mm): 6.6 ●Recommended countersunk screw for receiving plate (mm): Truss machine screw M4 ●No receiving plate ●Recommended screw: Truss machine screw M4 Material/Finish: ●Main body: Silicone rubber Caution: ●Do not use in environments above 80°C. ●Do not use with strong acids, strong alkalis, steam, or hot water. ●Use in environments below 80°C. ●Do not rub hard as the adsorption surface may be damaged and torn. ●Use a flat receiving surface without any unevenness.
