スガツネ工業(株)

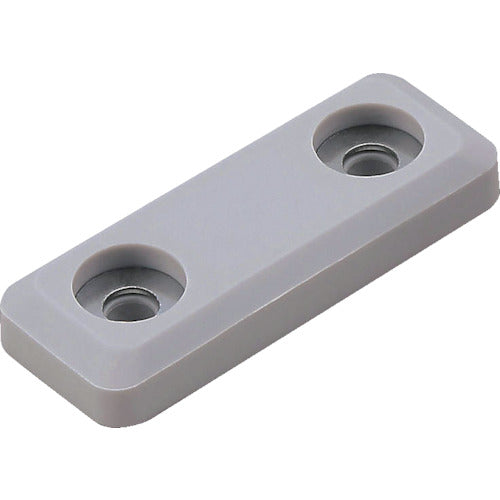

SUGATSUNE (140033799) MC-MS45LGR Silicone Magnet Catch MC-MS45LGR 1 piece
SUGATSUNE (140033799) MC-MS45LGR Silicone Magnet Catch MC-MS45LGR 1 piece
Regular price
¥739
Regular price
Sale price
¥739
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

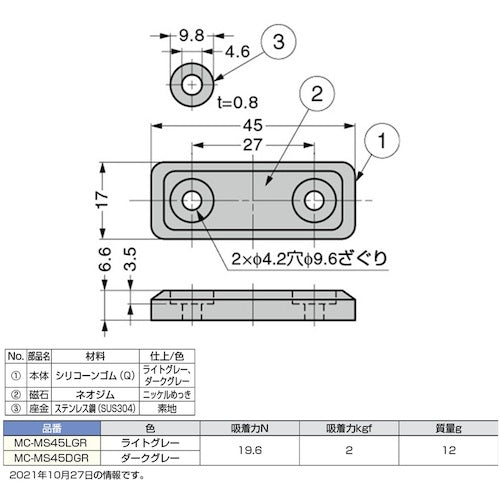

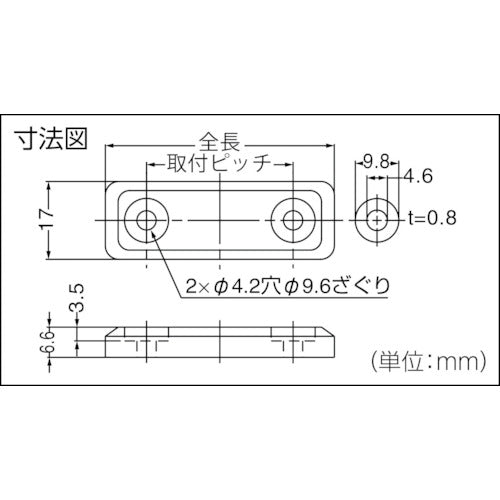

Catalog number: MC-MS45LGR Features: ●The magnet is wrapped in silicone rubber to reduce the impact noise when adsorbed. ●The fixing holes on the main body are reinforced with washers to prevent the silicone rubber from tearing when screwed in. Specifications: ●Color: Light gray ●Total length (mm): 45 ●Adhesive force (N): 19.6 ●Mounting pitch (mm): 27 ●Width (mm): 17 ●Thickness (mm): 6.6 ●Recommended countersunk screw for receiving plate (mm): Truss machine screw M4 ●No receiving plate ●Recommended screw: Truss machine screw M4 Material/Finish: ●Main body: Silicone rubber Caution: ●Do not use in environments above 80°C. ●Do not use with strong acids, strong alkalis, steam, or hot water. ●Use in environments below 80°C. ●Do not rub hard as the adsorbing surface may be damaged and torn. ●Use a flat receiving surface without any unevenness.
