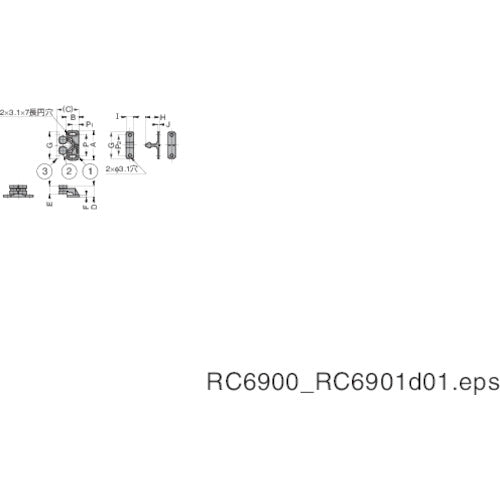

Catalogue number: RC6901BL Features: ● Made entirely of plastic, so there is no need to worry about rust. ● Made of strong plastic for outstanding durability. ● (No abnormalities in 300,000-time durability test) ● The combination of the spring elasticity of polyacetal resin and the rollers provides a light and smooth opening and closing touch. ● Ideal for general furniture, kitchenware, marine use, and other general and humid areas. ● Can be used as both a cover door and an inset door. Applications: ● General furniture, kitchenware, kitchen areas, furniture in marine environments, etc. Specifications: Color: Black Total length (mm): 31.3 Push-in force (N/kgf): 1.9 Pull-out force (N/kgf): 2.6 A (mm): 31.3 B (mm): 14 C (mm): 27.2 D (mm): 12.6 E (mm): 9 F (mm): 2.3 P (mm): 24.4 P1 (mm): 7.5 G (mm): 32 H (mm): 16.5 I (mm): 9 J (mm): 2 P2 (mm): 23.6 Color: Black Material/Finish: Body/Striker: Polyacetal (POM) Roller: Polyethylene (PE) Note: The indicated pull-out and push-in forces vary by 20-30%. Please check the actual product. The image is of one of the products in the same series, and the appearance may differ from that of the product number here.
