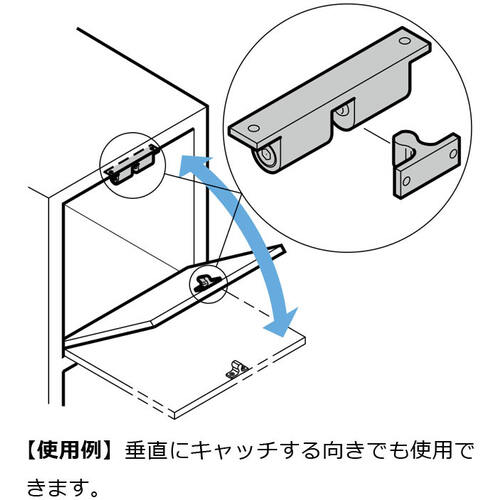

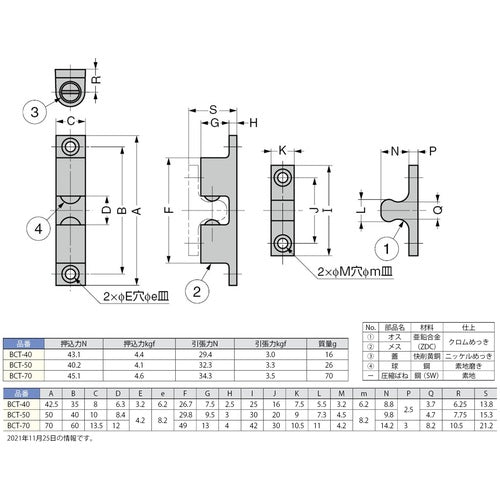

Catalog number: BCT-70 Features: ●Smooth insertion and removal. Ideal for vibrating machines. ●Can be caught in either parallel or vertical orientation. Applications: ●Measuring instruments, small distribution boards, machine tools. Specifications: ●Color: Silver ●Total length (mm): 70.0 ●Push-in force (N/kgf): 45.1/4.6 ●Tensile force (N/kgf): 34.3/3.5 ●Recommended flat head screws for receiving plate: M3 (BCT-40), M4 (BCT-50, BCT-70) Material/Finish: ●Zinc alloy Caution: ●Catch force cannot be adjusted ●Do not turn the slotted part ●There is variation in push-in force and tensile force ●Please check the actual product
