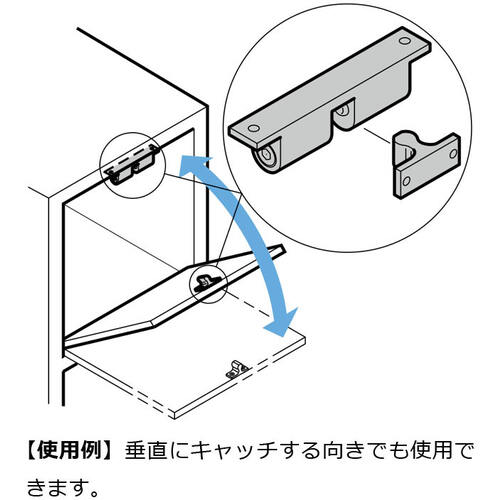

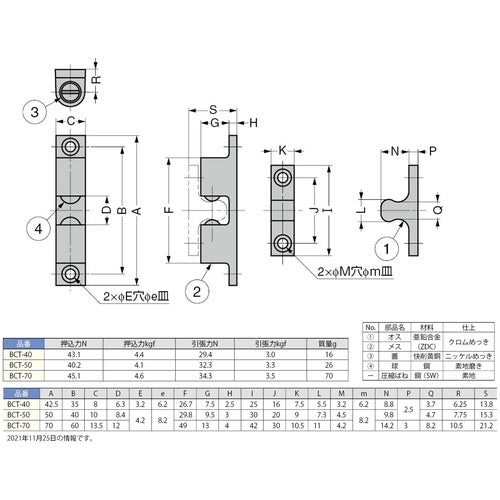

Catalog number: BCT-40 Features: ●Smooth insertion and removal. Ideal for vibrating machines. ●Can be caught in either parallel or vertical orientation. Applications: ●Measuring instruments, small distribution boards, machine tools. Specifications: ●Color: Silver ●Total length (mm): 42.5 ●Push-in force (N/kgf): 43.1/4.4 ●Tension force (N/kgf): 29.4/3.0 ●Recommended flat head screws for receiving plate: M3 (BCT-40), M4 (BCT-50, BCT-70) Material/Finish: ●Zinc alloy Caution: ●Catch force cannot be adjusted ●Do not turn the slotted part ●There is variation in push-in force and tension force ●Please check the actual product
