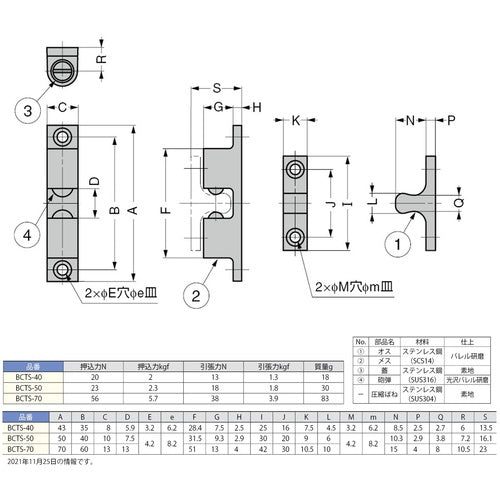

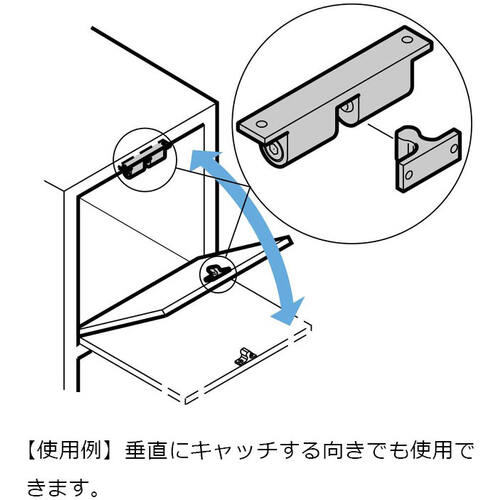

Catalog number: BCTS-50 Features: ● Made of stainless steel, it has excellent corrosion resistance. ● Ideal for high temperature, high humidity, and vibrating machines. ● Can be caught in either parallel or vertical orientation. Applications: ● Environmental machinery, ships, vehicles, communication equipment. Specifications: ● Color: Silver ● Overall length (mm): 50 ● Push-in force (N/kgf): 23/2.3 ● Pull-out force (N/kgf): 18/1.8 ● Recommended flat head screws for receiving plate: M3 (BCTS-40), M4 (BCTS-50, BCTS-70) Material/Finish: ● Stainless steel (equivalent to SUS316) Caution: ● Catch force cannot be adjusted ● Do not turn the slotted part ● Push-in force and pull-out force vary ● Please check the actual product
