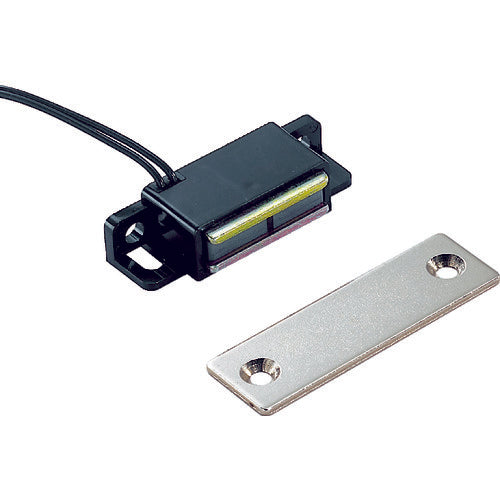

SUGATSUNE (140059418) SMC-103B Signal Magnet Catch SMC-103B 1 piece

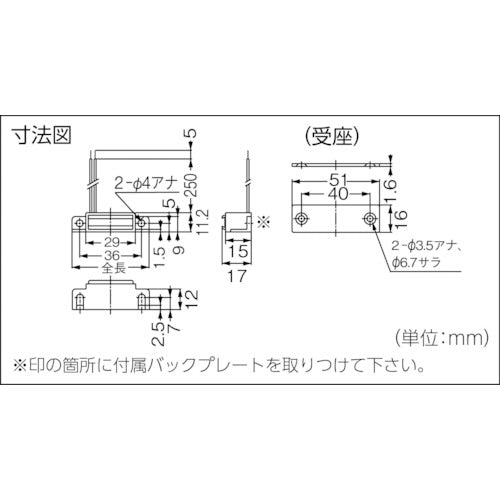

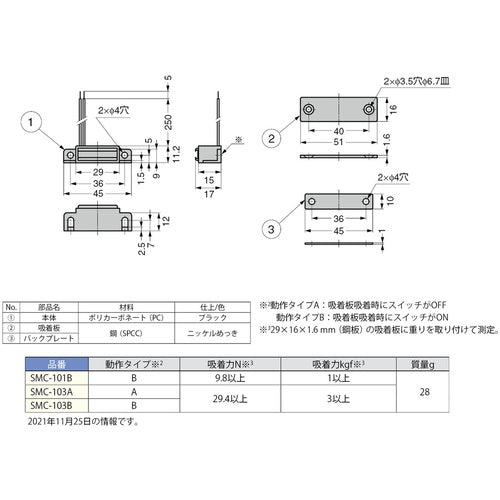

Catalog number: SMC-103B Features: ● Built-in reed switch. ● The switch turns ON when the suction plate is attached. Applications: ● Machinery, lockers, etc. Specifications: ● Color: Black ● Overall length (mm): 45 ● Adhesive force (N): 29.4 ● Main body mounting hole dimensions (mm): 4 ● Recommended flat head screw for receiving plate: M3 flat head screw Material/Finish: ● Main body: Polycarbonate ● Adhesive plate, back plate: Steel (nickel-plated finish) Set contents/Accessories: ● Adhesive plate, back plate Caution: ● When installing so that the surface marked with an * in the drawing does not come into contact with a magnetic material, attach the included back plate or an equivalent magnetic material to the surface marked with an *. ● Do not subject the product to strong impacts as it uses a reed switch. ● Do not use or store the product in a strong magnetic field. ● Take care not to allow magnetic materials (powders) or adhesives to adhere to the adsorption surface of this product. ● Use the product so that the adsorption surface of the main body does not protrude from the adsorption plate.
