SUGATSUNE (160026845) 360-P4W-32T / Mounting plate 360-P4W-32T 1 piece

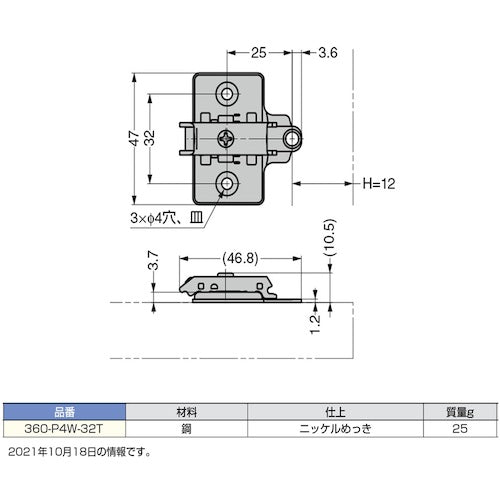

Catalog number: 360-P4W-32T Features: ●Mounting plate for Olympia series hinges. Specifications: ●Total length (mm): 47 ●Width (mm): 46.8 ●Thickness (mm): 10.5 ●With up/down adjustment mechanism (±2.5 mm) ●Pitch: 32 mm Caution: ●Install on a frame that can withstand the impact when the door is opened and closed and has the strength to handle the weight of the door. ●A frame that is not strong enough not only significantly reduces the movement of the door, but can also cause the rail to fall off, which is very dangerous. ●When installing on an aluminum frame, use AS nuts. ●Please prepare the aluminum frame separately.
