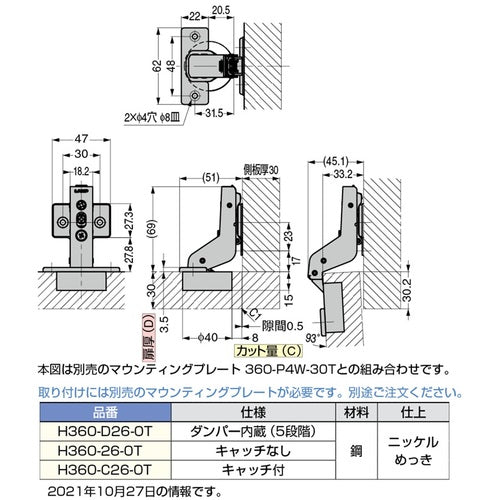

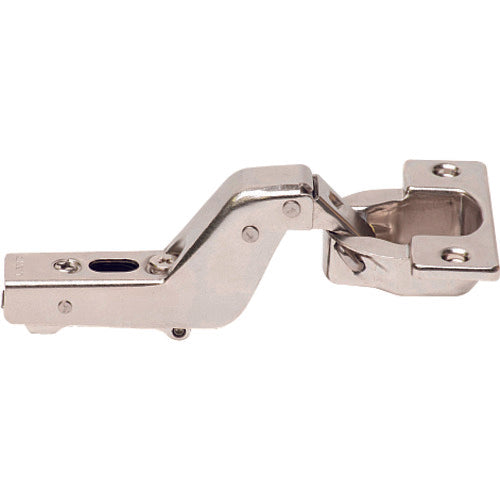

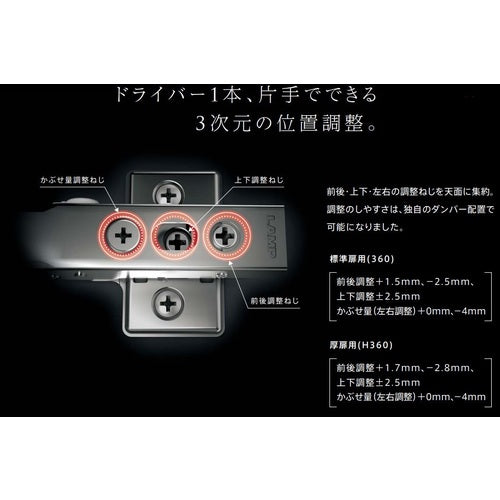

Catalog number: H360-26-0T Features: ●The damper function allows you to adjust the speed in 5 steps. Applications: ●For various industrial equipment. Specifications: ●Total length (mm): None ●Width (mm): 57 ●Number of screw holes: 2 ●Hole diameter (mm): 4 ●Number of wood screws: None ●Opening angle (°): 93° ●Length (mm): 69 ●Recommended door thickness (mm): 18-30 ●Height (mm): 45.1 ●3D door adjustment function (mm): Front to back +1.7mm, -2.8mm, Top to bottom ±2.5mm, Gap (left and right) +0mm, -4 Material/Finish: ●Steel Note: ●A mounting plate (sold separately) is required for installation. ●Please order separately.
