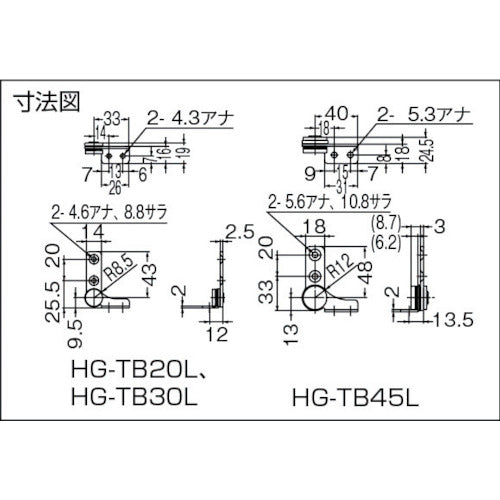

Catalogue number: HG-TB45R Features: ●Free stop specification that can hold any angle. ●The reciprocating torque is constant within the operating range. (Operating range: 0 to 180°) Applications: ●LCD monitors, security cameras, etc. Specifications: ●Total length (mm): 88 ●Width (mm): 18 ●Rated torque (N・m): 4.5 ●Number of screw holes: 4 ●Right-handed Material/Finish: ●Body: Stainless steel (SUS430) ●Spring washer: Steel Caution: ●Use left and right sets with the same torque value ●The axis centers of the hinges should be horizontal and installed so that they do not shift ●As this is not made entirely of stainless steel, it cannot be used around water
