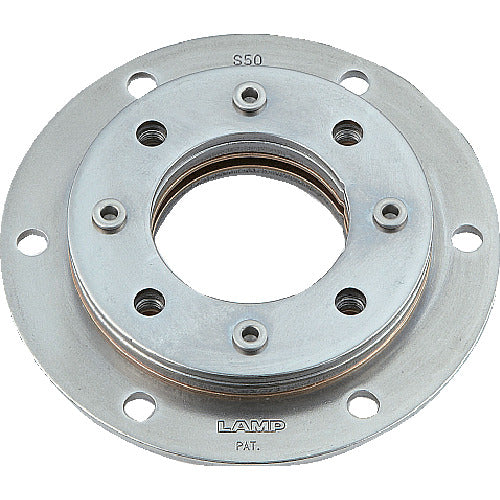

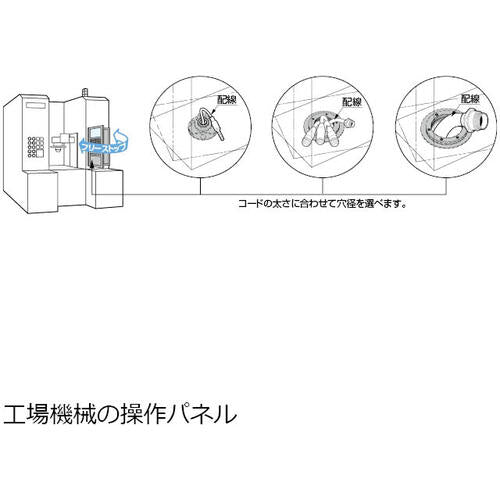

Catalog number: HG-S70-34 Features: ●The HG-S-MN, HG-S-21, and HG-S-75 models, which are different sizes, have been newly added, making it possible to use it in a wider range of applications. ●It can rotate freely 360°. ●Wiring can be passed through the central hole (excluding the HG-S-MN model). ●Five hole diameters are available: φ12, φ21.5, φ34, φ50, and φ75. Applications: ●Operation panels for machine tools, LCD monitors, etc. Specifications: ●Rated torque (N・m): 7 ●Hole diameter (mm): 34.0 ●Type: Horizontal installation ●External dimensions (mm): 87 ●Passed our company's 20,000-time opening and closing test Material/Finish: ●Stainless steel (SUS430) Caution: ●Please install this product horizontally and use it. ●Please be sure to read the handling precautions. ●It can be used upside down. ●However, the screws must be fixed from the installation surface. ●The product will not function if fixed from the opposite surface.
