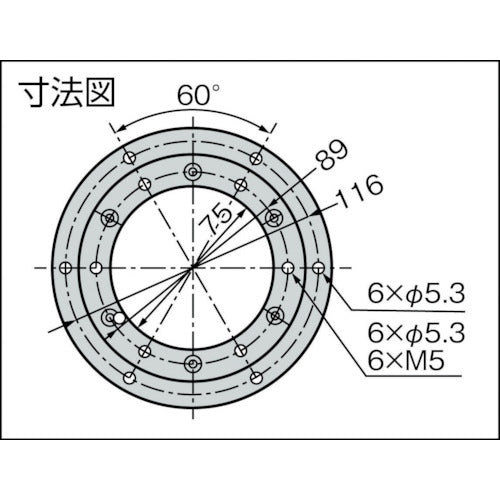

Catalog number: HG-S100-50 Features: ●The HG-S-MN, HG-S-21, and HG-S-75 models, which are different sizes, have been newly added, allowing for a wider range of uses. ●360° free rotation. ●Wiring can be passed through the central hole (except for the HG-S-MN model). ●Five hole diameters are available: φ12, φ21.5, φ34, φ50, and φ75. Applications: ●Operation panels for machine tools, LCD monitors, etc. Specifications: ●Rated torque (N・m): 10 ●Hole diameter (mm): 50.0 ●Type: Horizontal installation ●External dimensions (mm): 103 ●Passed our company's 20,000-time opening and closing test Material/Finish: ●Stainless steel (SUS430) Caution: ●Can be used upside down ●However, the screws must be fixed from the mounting surface ●The product will not function if fixed from the opposite surface.
