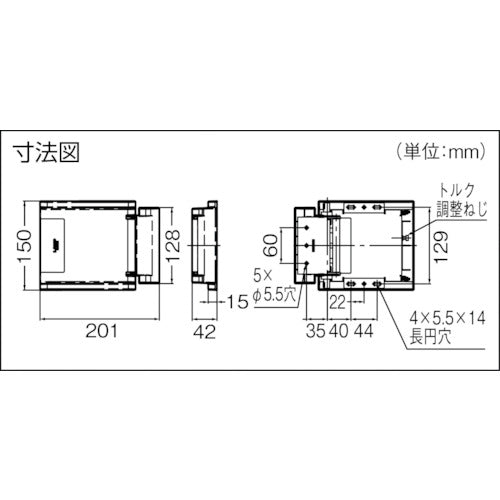

Catalog number: HG-PA200-25 Features: ●The type with a torque peak angle of 35° (HG-PA201 type) is ideal for tall and short top lids. ●The spring reaction force makes it easy to lift heavy top lids (power assist function). ●The damper works when closing (soft close function). ●The torque can be adjusted by turning the adjustment screw (±5%). ●The body and mounting holes are hidden by the resin cover, giving it a neat appearance. Applications: ●Heavy top lids for semiconductor manufacturing equipment, analytical equipment, medical equipment, etc. Specifications: ●Total length (mm): 201 ●Width (mm): 150 ●Thickness (mm): 42 ●Number of screw holes: 9 ●Hole diameter (mm): 5.5 ●Type: Torque peak angle 20 degrees ●Color: Cover: White ●Torque (N・m): 25±10% ●Torque peak angle (°): 20 ●External installation ●Operating temperature range: 0 to 40°C Material/Finish: ●Base: Stainless steel (SUS430) ●Resin cover: PBT resin Caution: ●Make sure the shaft center is horizontal and installed so that it does not shift. ●Please install a separate stopper to prevent opening and closing beyond the movable angle.
