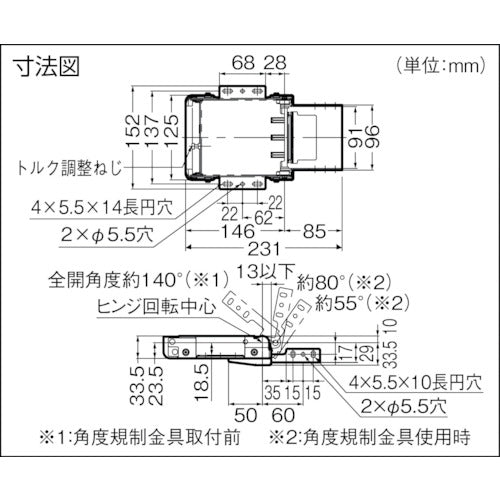

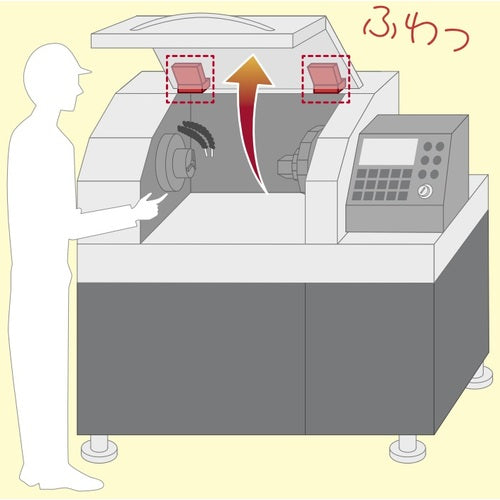

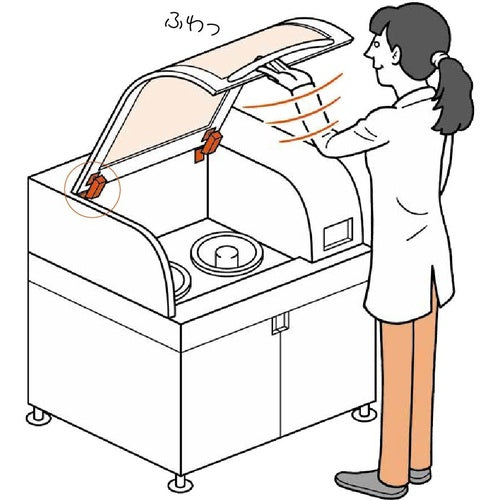

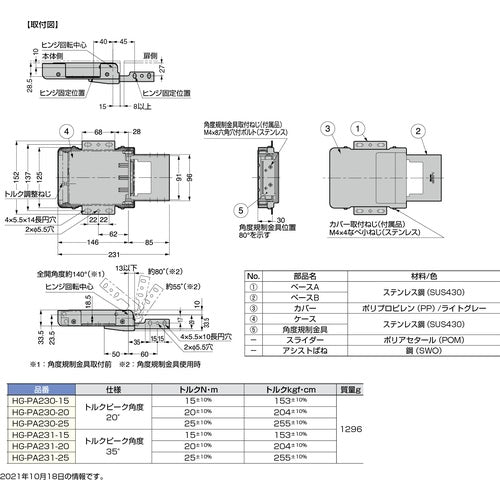

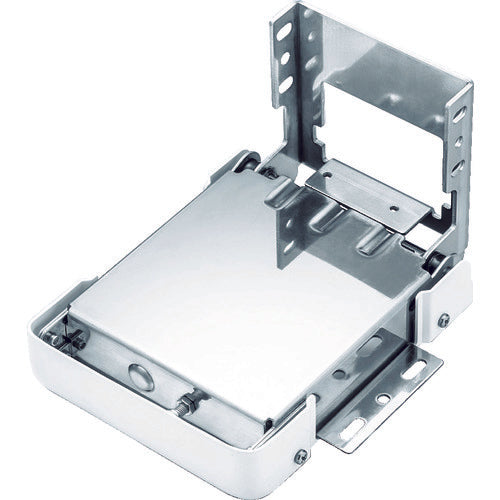

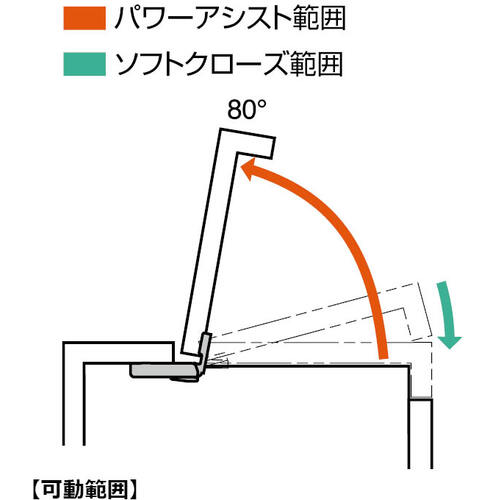

Catalog number: HG-PA230-15 Features: ●The type with a torque peak angle of 35° (HG-PA231 type) is ideal for tall and short top lids. ●The spring's reaction force makes it easy to lift heavy top lids (power assist function). ●The damper works when closing (soft close function). ●The torque can be adjusted by turning the adjustment screw (±5%). ●The opening angle can be regulated to 55° or 80°. ●The opening angle can also be regulated between 15° and 90° (custom order available). Applications: ●Heavy top lids for semiconductor manufacturing equipment, analytical equipment, medical equipment, etc. ●Medical equipment ●Analytical equipment ●Semiconductor equipment ●Various machines, etc. ●Various industrial equipment. Specifications: ●Total length (mm): 231 ●Width (mm): 152 ●Thickness (mm): 43.5 ●Type: Torque peak angle 20 degrees ●Torque (N・m): 15±10% ●Torque peak angle (°): 20 ●Inside mounting ●Operating temperature range: 0 to 40°C Materials/Finish: ●Base: Stainless steel (SUS430) ●Cover: Polypropylene (PP) Caution: ●Make sure the shaft center is horizontal and installed so that it does not shift. ●Install a separate stopper to prevent opening and closing beyond the movable angle.
