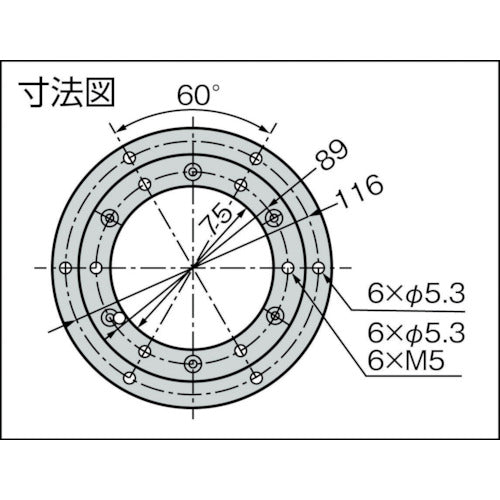

Catalog number: HG-S50-75 Features: *The HG-S-MN, HG-S-21, and HG-S-75 models, which are different sizes, have been newly added, allowing for an even wider range of uses. *360° free rotation. *Wiring can be passed through the center hole (except for the HG-S-MN model). *Five hole diameters are available: φ12, φ21.5, φ34, φ50, and φ75. Uses: ● Operation panels of machine tools, etc., and LCD monitors Specifications: ● Rated torque (N・m): 5 ● Hole diameter (mm): 75.0 ● Type: Horizontal installation ● External dimensions (mm): 128 ● Passed our company's 20,000 opening and closing tests Material/Finish: ● Stainless steel (SUS430) Caution: ● Be sure to read the handling precautions ● Can be used upside down ● However, the screws must be fixed from the mounting surface (see "Examples of mounting orientation" on each publication page) ● The product will not function if fixed from the opposite surface ● The image is of a product in the same series, and the appearance may differ from that of this product number.
