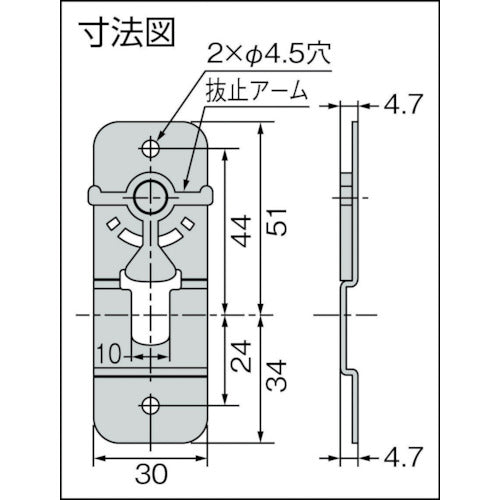

Catalog number: HG-RNM30 Features: ● Door can be removed and attached without tools, making maintenance easy. ● Equipped with a free stop mechanism, it can be held at any angle. ● Equipped with a locking arm to prevent the door from falling off unexpectedly. ● Hinges and seats, 2 pieces each, 1 set. Specifications: ● Total length (mm): 85 ● Width (mm): 30 ● Thickness (mm): 17.7 ● Rated torque (N・m): 3 (2 pieces) ● Number of screw holes: 4 ● Hole diameter (mm): 4.5 ● Rated torque (N・m) rotation direction: 3.0±20% ● Passed our company's 20,000 times opening and closing test Material / Finish: ● Stainless steel ● Polyacetal Caution: ● Please be sure to check the handling precautions ● The axis center of the hinges should be horizontal and installed so that they do not shift ● The operating force of the door changes depending on the environment (temperature and wind) of the place of use ● Do not use this product on doors that are subject to strong wind pressure ● If airtightness is required, please use mohair separately
