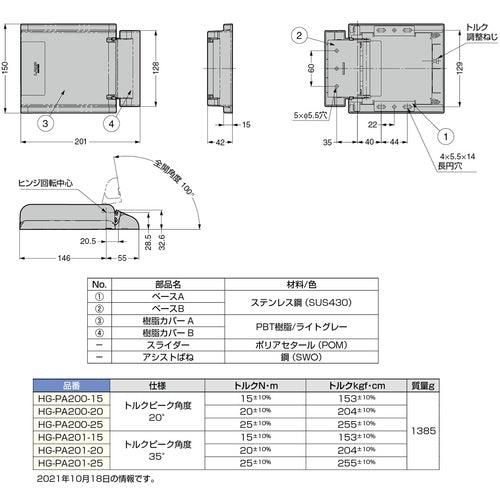

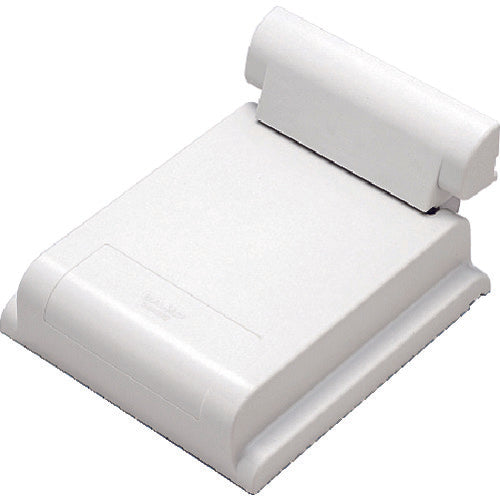

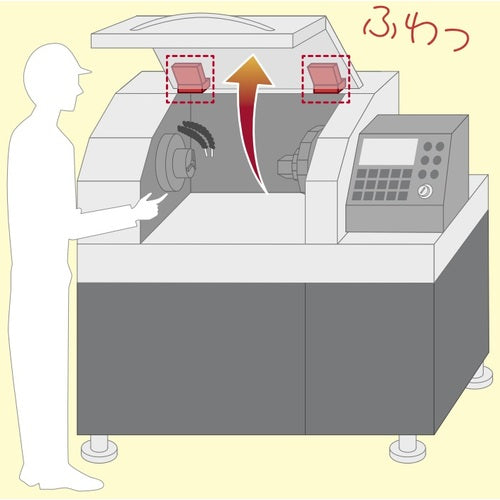

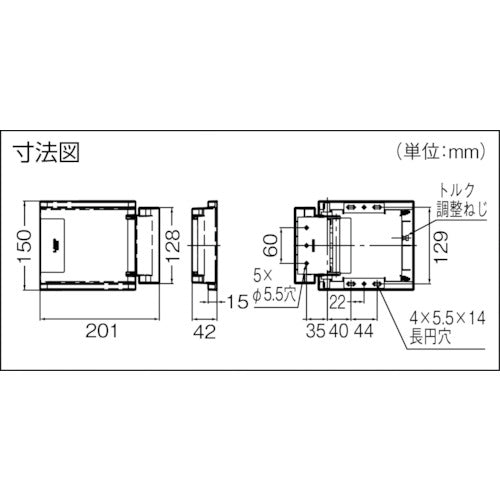

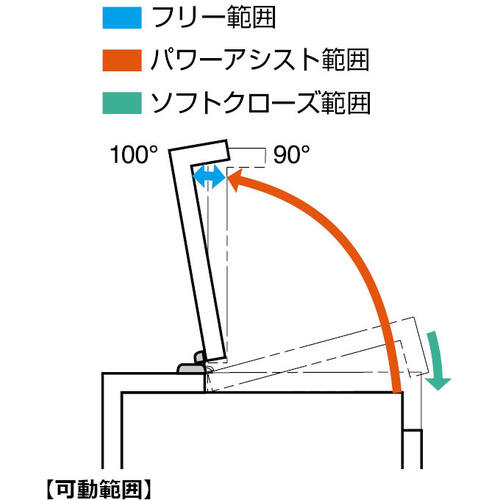

Catalog number: HG-PA201-20 Features: ●The type with a torque peak angle of 35° (HG-PA201 type) is ideal for tall and short lids. ●The spring's reaction force makes it easy to lift heavy lids (power assist function) ●The damper works when closing (soft close function) ●The torque can be adjusted by turning the adjustment screw (±5%) ●The resin cover hides the main body and mounting holes, giving it a neat appearance. Applications: ●Heavy lids for semiconductor manufacturing equipment, analytical equipment, medical equipment, etc. ●For tall and short lids ●Medical equipment ●Analytical equipment ●Semiconductor equipment ●Various machines, etc. ●Various industrial equipment. Specifications: ● Total length (mm): 201 ● Width (mm): 150 ● Thickness (mm): 42 ● Torque (N・m): 20±10% ● Torque peak angle (°): 35 ● External installation ● Operating temperature range: 0 to 40°C Materials/Finish: ● Base: Stainless steel (SUS430) ● Resin cover: PBT resin Caution: ● Please install a separate stopper on the housing to prevent the door from opening or closing beyond the movable angle. ● The center of gravity of the corresponding doors differs between the HG-PA200 and HG-PA201 models.
