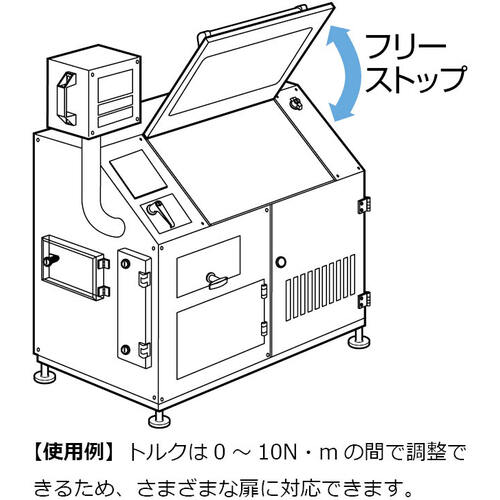

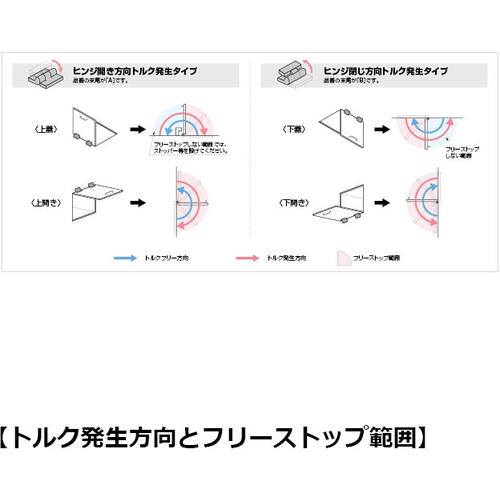

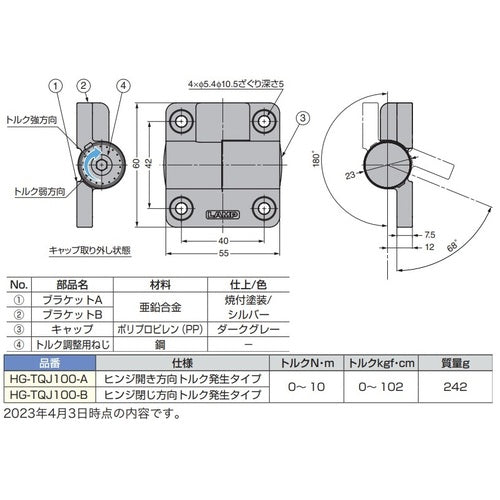

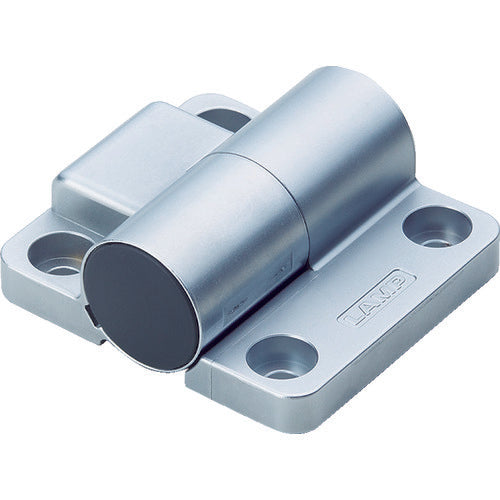

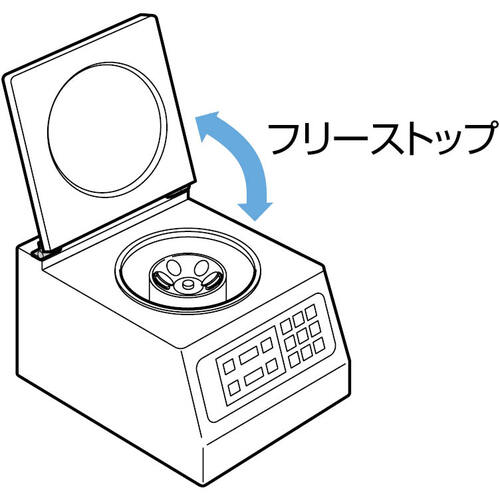

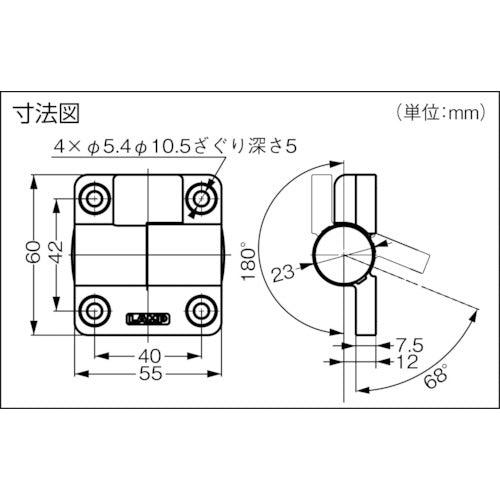

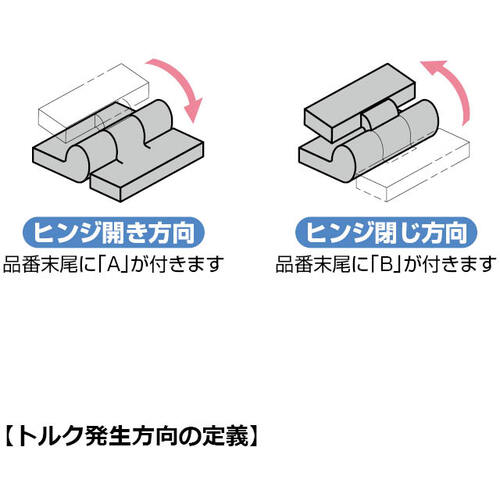

Catalog number: HG-TQJ100-A Features: ●This is a torque hinge that generates torque in one direction. ●Since torque in the opposite direction is hardly generated, doors and other items can be operated smoothly. ●The torque can be adjusted between 0 and 10 N・m. ●The torque adjustment part has a cap, making it excellent in design. Applications: ●Doors for medical equipment, FA and OA equipment, etc. ●Opening and closing doors that do not require impact ●Medical equipment ●FA equipment ●OA equipment Specifications: ●Total length (mm): 55 ●Width (mm): 60 ●Thickness (mm): 7.5 ●Number of screw holes: 4 ●Hole diameter (mm): 5.4 ●Type: Hinge opening direction torque generation type ●Surface treatment: Baked paint/silver ●Torque (N・m): 0-10 ●Torque generation type: Hinge opening direction ●Adjustable Material/Finish: ●Bracket: Zinc alloy ●Cap: Polypropylene (PP) Caution: ●Make sure the shaft center is horizontal and installed so as not to shift. ●Please install a separate stopper to prevent opening and closing beyond the movable angle. ● Make sure the hinges are level and installed so that they do not shift.● Do not remove the torque adjustment screw.● Use a hexagonal wrench (size 5) to adjust the torque.
