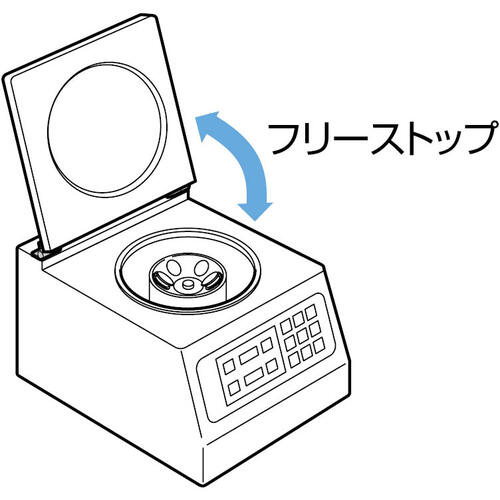

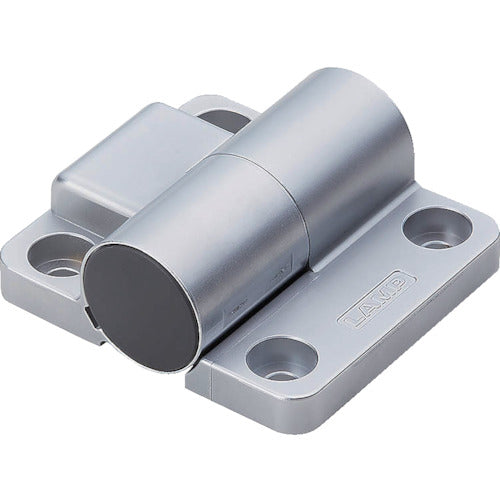

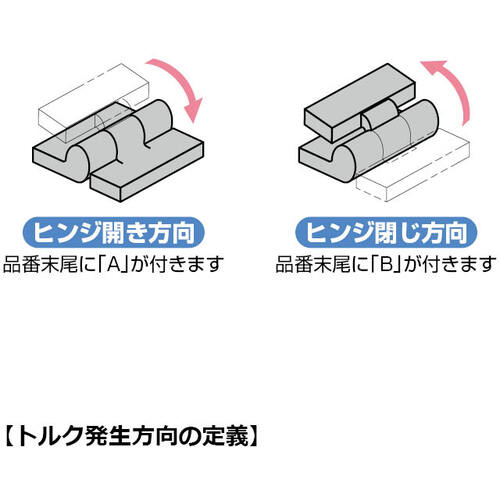

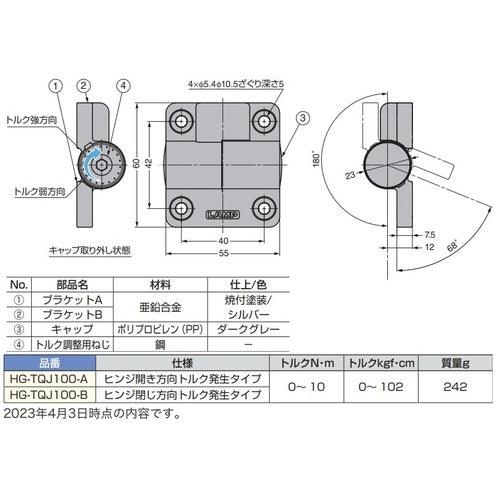

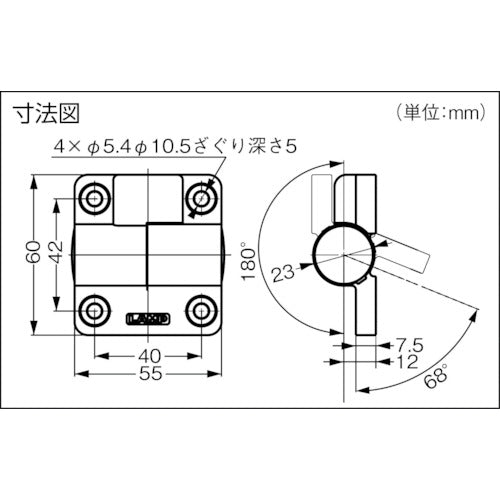

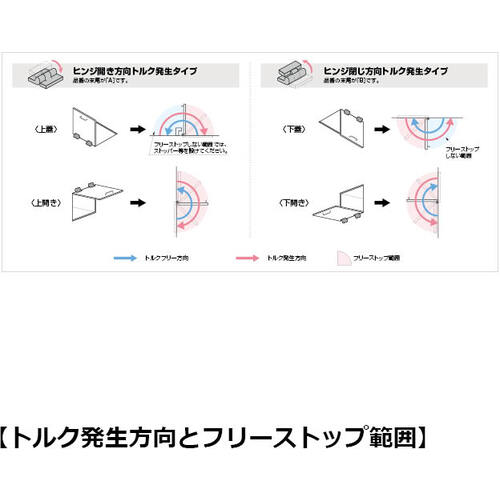

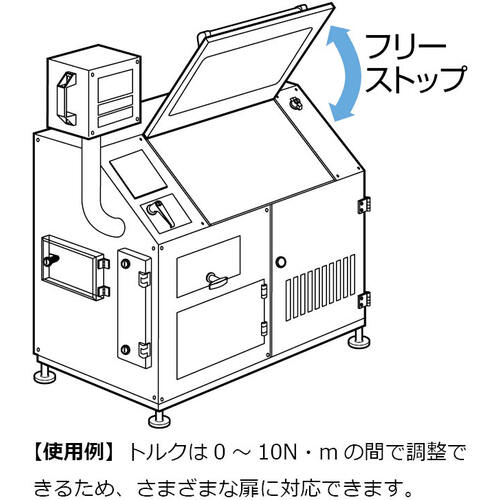

Catalog number: HG-TQJ100-B Features: ●This is a torque hinge that generates torque in one direction. ●Since almost no torque is generated in the opposite direction, doors and other objects can be operated smoothly. ●The torque can be adjusted between 0 and 10 N・m. ●Since the torque adjustment part has a cap, it has excellent design. ●High torque of up to 10 N・m. ●The operating torque in the torque generation direction is constant. Applications: ●Doors for medical equipment, FA and OA equipment, etc. ●Opening and closing doors that do not require impact ●Medical equipment ●FA equipment ●OA equipment Specifications: ●Total length (mm): 55 ●Width (mm): 60 ●Thickness (mm): 7.5 ●Number of screw holes: 4 ●Hole diameter (mm): 5.4 ●Type: Hinge closing direction torque generation type ●Surface treatment: Baked paint/silver ●Torque (N・m): 0-10 ●Torque generation type: Hinge closing direction ●Adjustable Material/Finish: ●Bracket: Zinc alloy ●Cap: Polypropylene (PP) Caution: ●Make sure the shaft center is horizontal and installed so that it does not shift. ●Please install a separate stopper to prevent the door from opening and closing beyond the movable angle. ●The image shows a product in the same series, and the appearance may differ from that of the product number shown here.
