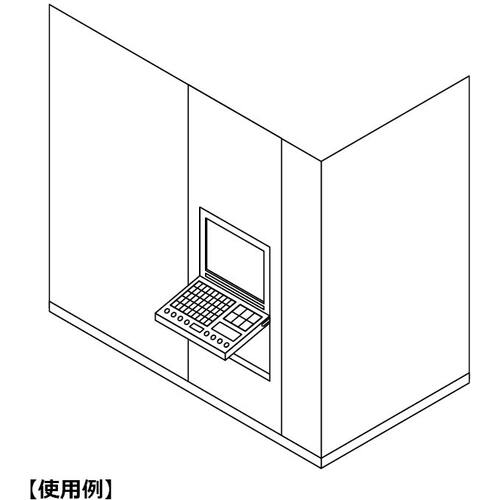

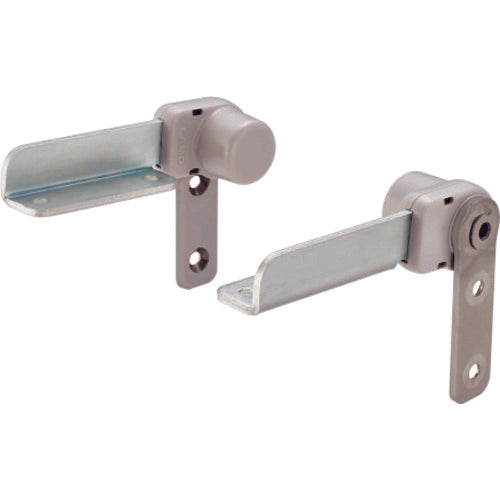

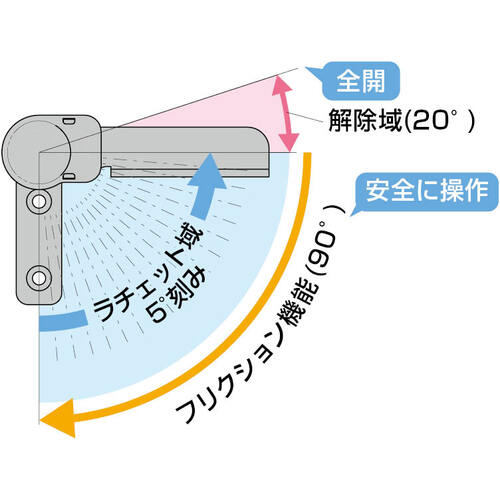

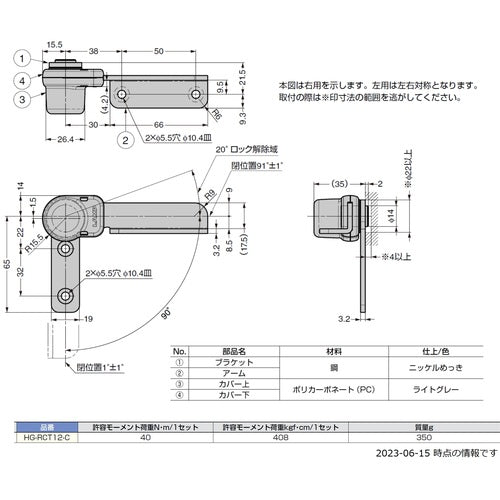

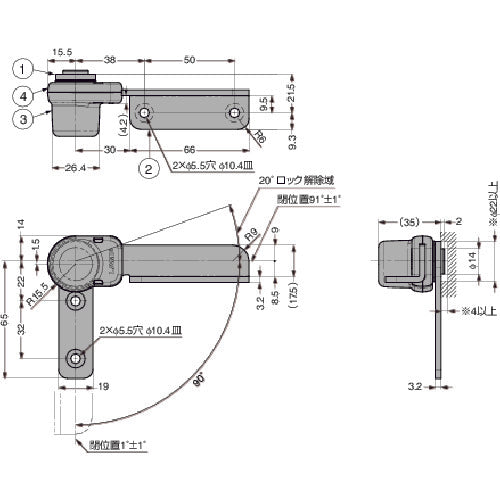

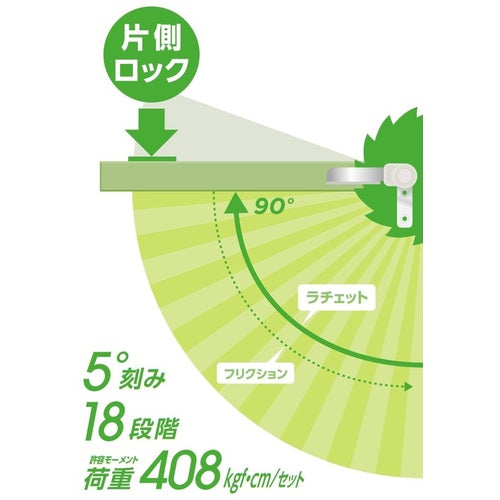

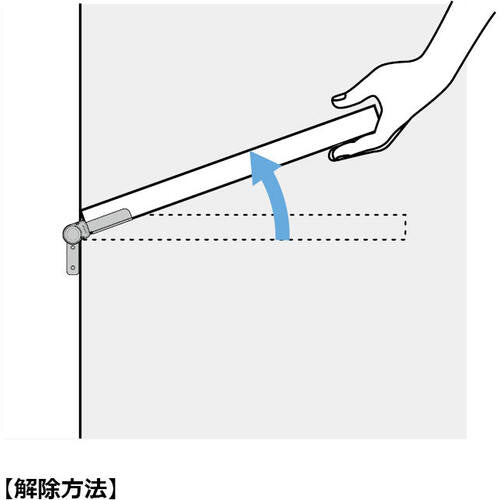

Catalogue number: HG-RCT12-C Features: ●The ratchet mechanism maintains the angle in 5° increments from the open to closed positions. ●A clanging sound will be heard when lifted to the top of the ratchet range. ●The ratchet mechanism will be released if lifted any higher. ●The friction (resistance) function works even when released, allowing for safe operation. Applications: ●Adjusting the angle of folding tables, touch panels, keyboards, etc. Specifications: ●Total length (mm): 111.5 ●Width (mm): 79 ●Thickness (mm): None ●Rated torque (N・m): 40 ●Number of screw holes: 4 ●Hole diameter (mm): 5.5 ●Torque (N・m): 40 ●Ratchet mechanism in 5° increments from open to closed positions Material/Finish: ●Steel (SPCC) Caution: ●Cannot be used on sofas or zaisu chairs
