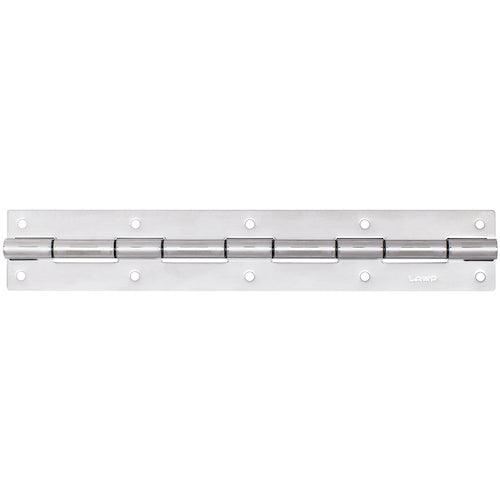

SUGATSUNE (170037315) HG-TLS30-50-300 / Torque long hinge HG-TLS30-50-300 1 piece

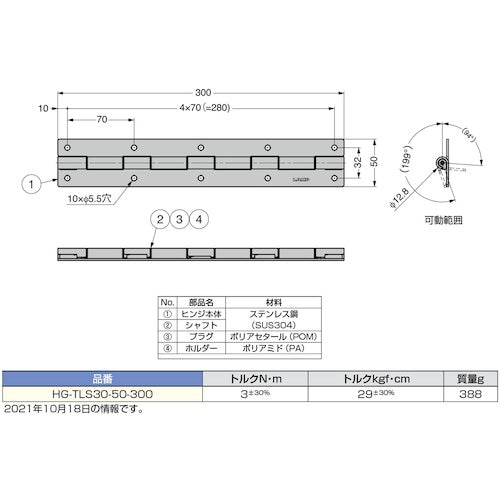

Catalog number: HG-TLS30-50-300 Features: ●Long-hinged torque hinge. Applications: ●For various industrial equipment. Specifications: ●Total length (mm): 300 ●Width (mm): 50 ●Thickness (mm): Deleted ●Rated torque (N・m): 3±30% ●Number of screw holes: 10 ●Hole diameter (mm): Φ5.5 ●Installation method: Screw (sold separately) ●Torque (N・m): 3±30% ●Length (mm): 300 ●Torque (kgf・cm): 29 ●Installation method: Screw (sold separately) ●Greaseless Material/Finish: ●Body/Shaft: Stainless steel (SUS304) ●Plug: Polyacetal (POM) ●Holder: Polyamide (PA) Caution: ●Install so that the axis centers of the hinges do not shift. ●Cannot be cut for use.
