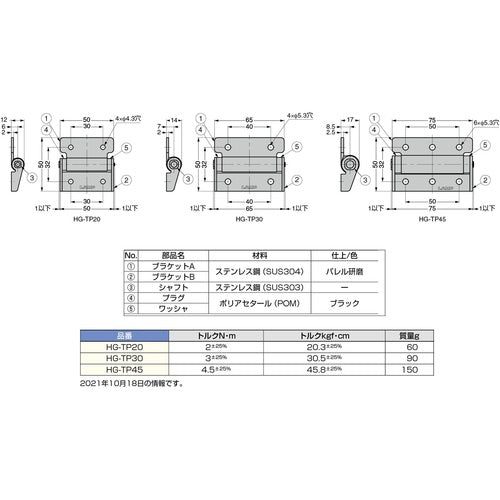

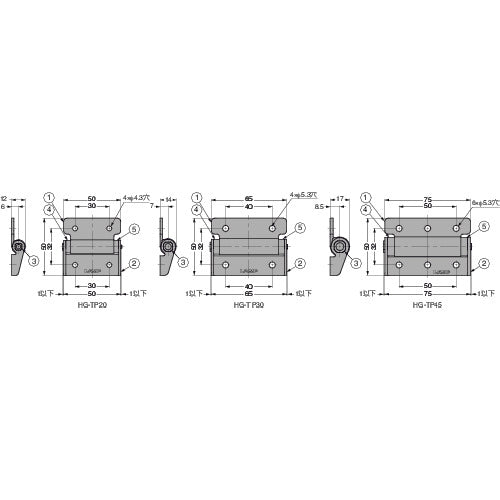

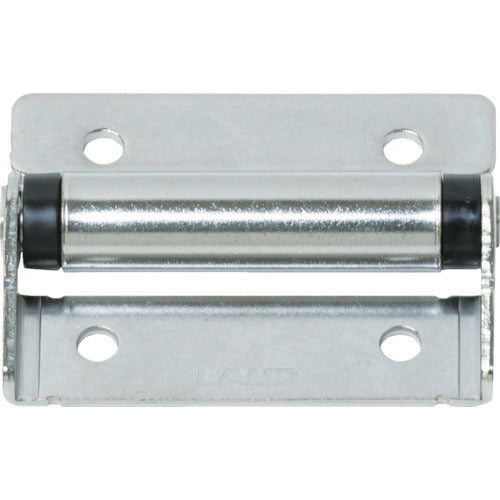

Catalogue number: HG-TP30 Features: ●Resin parts are used in the sliding parts to prevent the generation of metal powder. ●Can be used with the shaft oriented horizontally or vertically. Applications: ●Audio equipment, FA equipment, various automatic equipment Specifications: ●Total length (mm): 65 ●Width (mm): 50 ●Thickness (mm): 14 ●Rated torque (N・m): 3±25% ●Number of screw holes: 4 ●Hole diameter (mm): 5.3 ●Torque (N・m): 3±25% ●Operating temperature: -0℃ to 40℃ Material/Finish: ●Stainless steel
