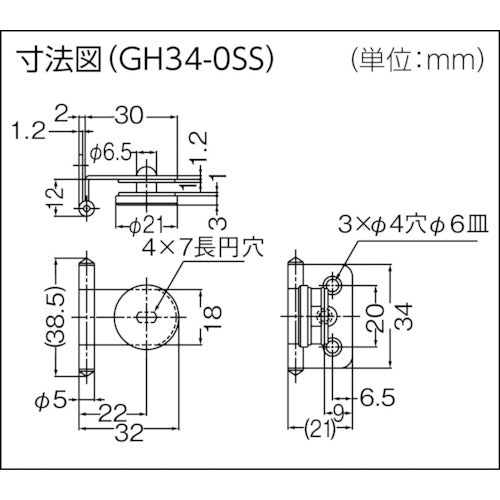

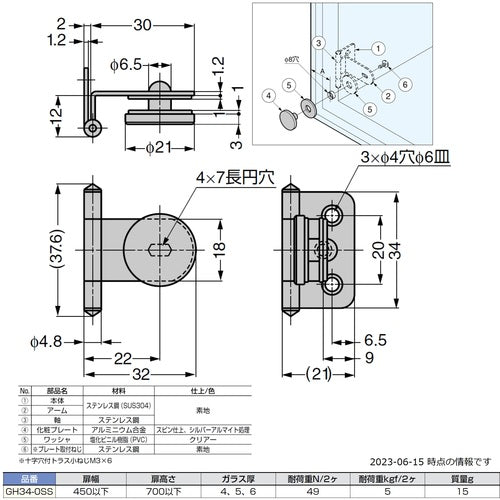

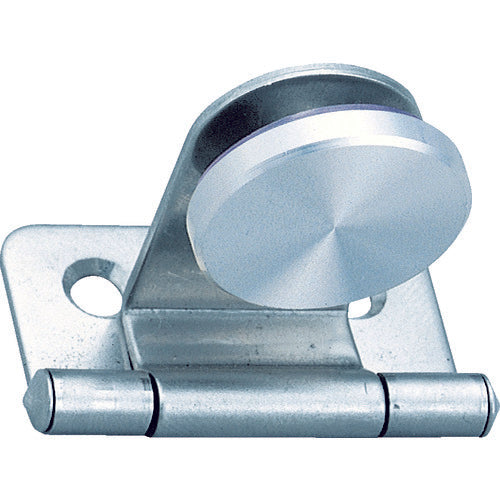

Catalogue number: GH34-0SS Features: ●Hinges for glass doors and plastic doors. Specifications: ●Total length (mm): 32 ●Width (mm): 21 ●Number of screw holes: 3 ●Height (mm): 34 ●Type: Inset ●Compatible glass thickness (mm): 4, 5, 6 ●Recommended door weight: 5kg or less x 2 sets ●Recommended door width x height: 450 x 700mm or less ●For inset doors Materials/Finish: ●Body, arm: Stainless steel ●Decorative plate: Aluminum alloy ●Washer: PVC Notes: ●Two hinges are used per door. ●Glass size should be determined with priority given to load capacity ●When installing screws, use a screw loosening prevention agent as well ●Load capacity is the value when two hinges are used
