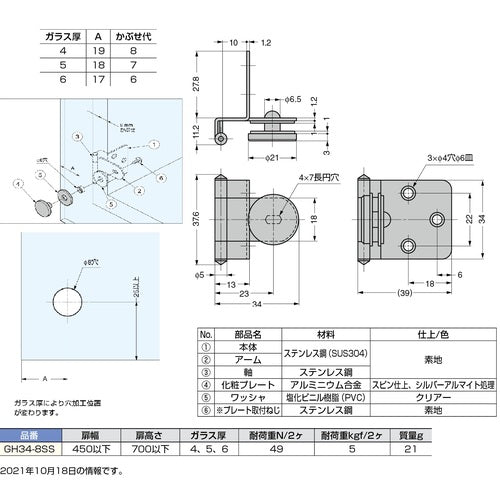

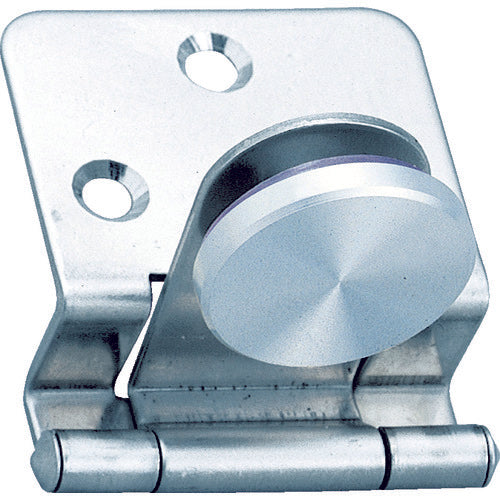

Catalog number: GH34-8SS Features: ●Hinges for glass doors and plastic doors. Specifications: ●Number of screw holes: 3 ●Type: Door width 450 or less, door height 700 or less ●Compatible glass thickness (mm): 4, 5, 6 ●Recommended door weight: 5kg or less x 2 sets ●Recommended door width x height: 450 x 700mm or less ●For cover doors Materials/Finish: ●Body, arm: Stainless steel ●Decorative plate: Aluminum alloy ●Washer: PVC Notes: ●*Installation position varies depending on door thickness ●Give priority to load capacity when deciding glass size ●When installing screws, use a screw loosening prevention agent as well ●Load capacity is the value when using two hinges
